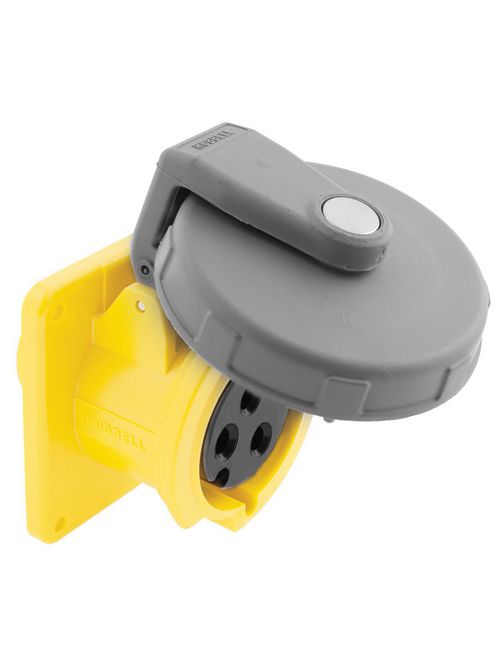

Hubbell Wiring Devices HBL316R4W IEC 100 to 130 Volt 16 Amp 2-Pole 3-Wire Watertight Pin and Sleeve Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$169.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL316R4W
North Coast Part # 210563

Features

  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Yellow
  • Environmental Conditions: Watertight
  • Item Type: Single Flanged
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Receptacle
  • UPC: 783585403243

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 16 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 16 A
  • Current Rating: 16 A
  • Phase: Single Phase
  • Voltage Rating: 100-130 VAC
  • Voltage Rating Description: 100-130 VAC
  • Wattage: 1760

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA StandardC22.2 No. 182.1 | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146032
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358540324
GTiN 00783585403243
Length 4.430 in
Width 4.370 in
Size Standard Sized Product
Color Yellow
Voltage 100-130 Volt
Type Single Flanged
Material Thermoplastic
Conductor Size 14-10 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Mounting Type Screw, External, Surface
Height 4.060 in
Wire Size 14-10 AWG
Wattage 1760 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminals
Current 16 A
Environmental Conditions Watertight
Number of Poles 2 Pole
Number of Wires 3
Sub Brand IEC 309 Pin and Sleeve Devices
Standard CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
