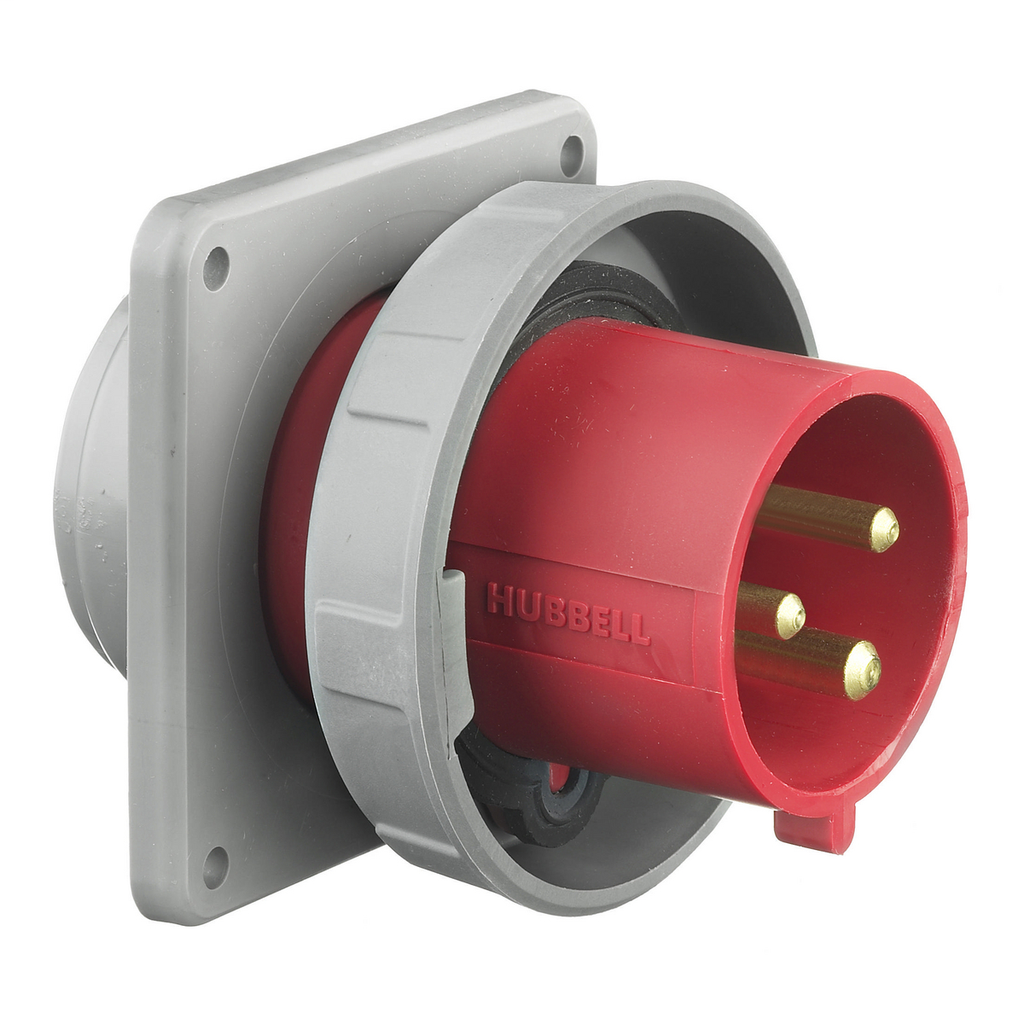

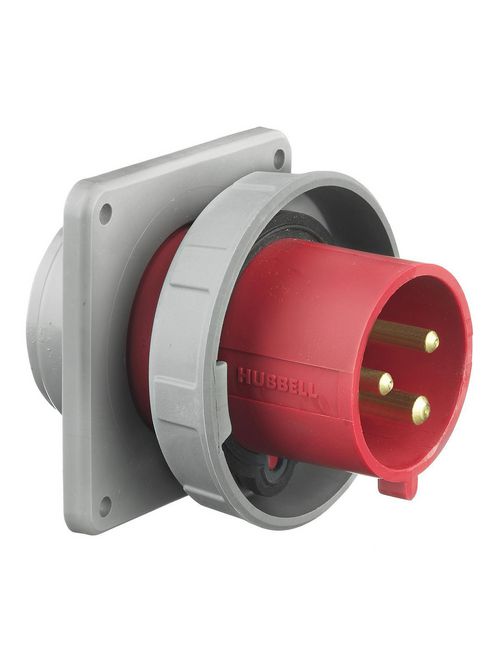

HWDK HBL330B7W PS, IEC, INLET, 2P3W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$359.76/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL330B7W
North Coast Part # 1500340

Features

  • Rugged one-piece housing
  • Thermoset polyester contact carrier
  • Solid one-piece pins for reliable electrical contact
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Each - Height: 4.060 in
  • Each - Length: 4.430 in
  • Each - Width: 4.370 in
  • Industry Standard(s): CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1.;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: High Ampacity Watertight Connections
  • Color: Red
  • Dielectric Strength: Withstands 3000V Minimum in
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • NEMA Rating: Non-NEMA
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Special Features: Watertight
  • Standard: CSA Certified File LR280C; UL Classified to IEC 60309-1 IEC 60309-2; UL Listed, File E146032
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
  • Type: Watertight Inlet
  • Voltage Rating: 480 VAC
  • Wattage: 14400
  • Wire Size: #12 AWG to #10 AWG
  • Voltage Rating Description: 480 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540348
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 30A 480V AC, 2-Pole 3- Wire Grounding, Terminal Screws, Red, Watertight
GTiN 00783585403489
Length 4.430 in
Width 4.370 in
Size Standard Sized Product
Color Red
Voltage 480 Volt
Type Single, Flanged
Material Thermoplastic
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Height 4.060 in
Wire Size 12-10 AWG
Wattage 14400 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand IEC 309 Pin and Sleeve Devices
Conductor Size 12-10 AWG
Mounting Type Screw
Standard CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Environmental Conditions Watertight
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact
Dielectric Strength Withstands 3000V Minimum in
