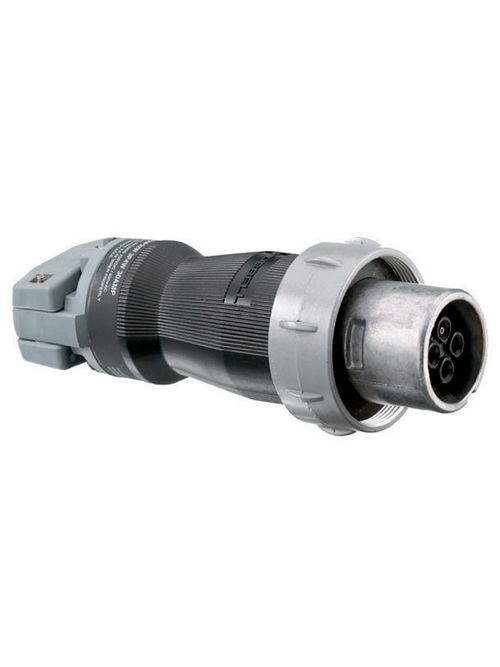

HWDK HBL330PS2WR PS, INS, PLUG, 2P3
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$300.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL330PS2WR
North Coast Part # 1829513

Features

  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
  • All-Brass sleeve contacts provide reliable electrical contact

Specifications

General

  • Application: Metallic with Nylon Shroud
  • Environmental Conditions: Watertight
  • Item Type: Male Plug- Reversed
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 | Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 | Environmental - Operating Temperatures - Max. Continuous 75°C | Min. -40°C w/o impact -25° with impact | Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 | Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Series: UL 1686 Class 1 Insulgrip®
  • Style: Reversed Service,Style 2 Grounding
  • Type: Watertight Plug
  • UPC: 783585012131

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Voltage Rating: 600 VAC/250 VDC
  • Voltage Rating Description: 600V AC/250V DC

Conductor Related

  • Cord Type: All Portable
  • Number Of Wires: 3-Wire
  • Wire Size: #10 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 159 | UL Listed and CSA Certified Type 4X | UL Standard 1682,UL 50, and UL 1010
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501213
GTiN 00783585012131
Length 9.000 in
Width 4.300 in
Size Standard Sized
Color Black/Gray
Voltage 250 Volt
Type Standard, Male, Reversed
Material Composite
Product Series UL 1686 Class 1 Insulgrip
Cord Type Portable
Applications High Ampacity Connections
Height 4.250 in
Wire Size 10-8 AWG
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Terminal Screws
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Pin and Sleeve Devices
Conductor Size 10-8 AWG
Mounting Type Cord
Standard CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Environmental Conditions Watertight
