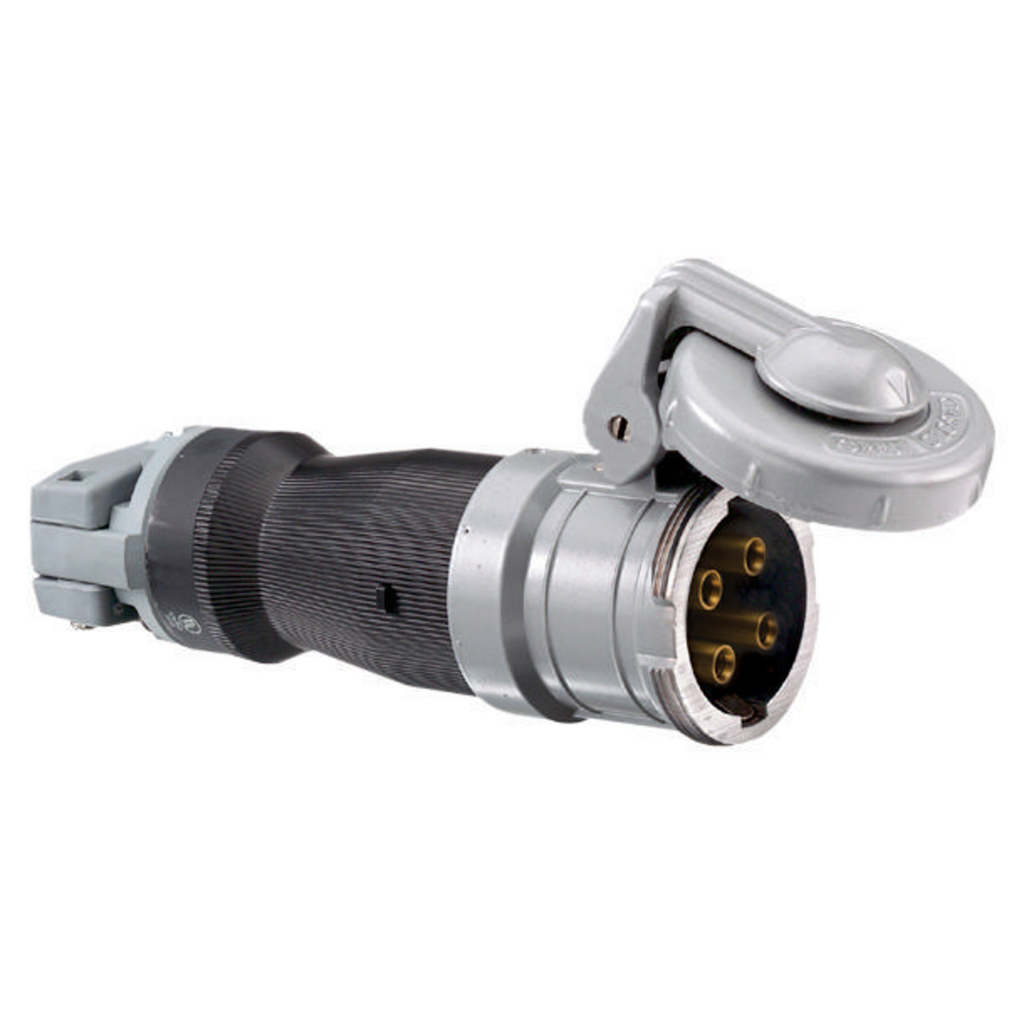

HWDK HBL360CS1WR PS, INS, CONN, 2P3
$436.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL360CS1WR
North Coast Part # 1437322

Features

  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber

Specifications

General

  • Application: Metallic with Nylon Shroud
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Standard
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 | Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 | Environmental - Operating Temperatures - Max. Continuous 75°C | Min. -40°C w/o impact -25° with impact | Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 | Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Series: UL 1686 Class 1 Insulgrip®
  • Style: Reversed Service,Style 1 Grounding
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector
  • UPC: 783585012162

Dimensions

  • Display Size: Standard

Electrical Ratings

  • Amperage Rating: 60 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Voltage Rating: 600 VAC/250 VDC
  • Voltage Rating Description: 600V AC/250V DC

Conductor Related

  • Conductor Range: #6 AWG to #4 AWG
  • Number Of Conductors: 3-Wire Grounding Style 1
  • Number Of Wires: 3-Wire

Certifications and Compliance

  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 182.1 | UL Listed and CSA Certified Type 4X | UL Standard 1682
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358501216
GTiN 00783585012162
Length 9.810 in
Width 4.810 in
Size Standard
Color Black/Gray
Voltage 600 Volt
Type Reversed
Material Composite
Number of Conductors 3-Wire Grounding Style 1
Conductor Size 6-4 AWG
Product Series UL 1686 Class 1 Insulgrip
Applications High Ampacity Connections
Mounting Type Cord
Height 4.120 in
Temperature Rating -40 to 75 C/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Style 1, Grounding
TC Connection Pressure Screw Terminal
Current 60 A
Environmental Conditions Watertight
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Pin and Sleeve
Standard CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
