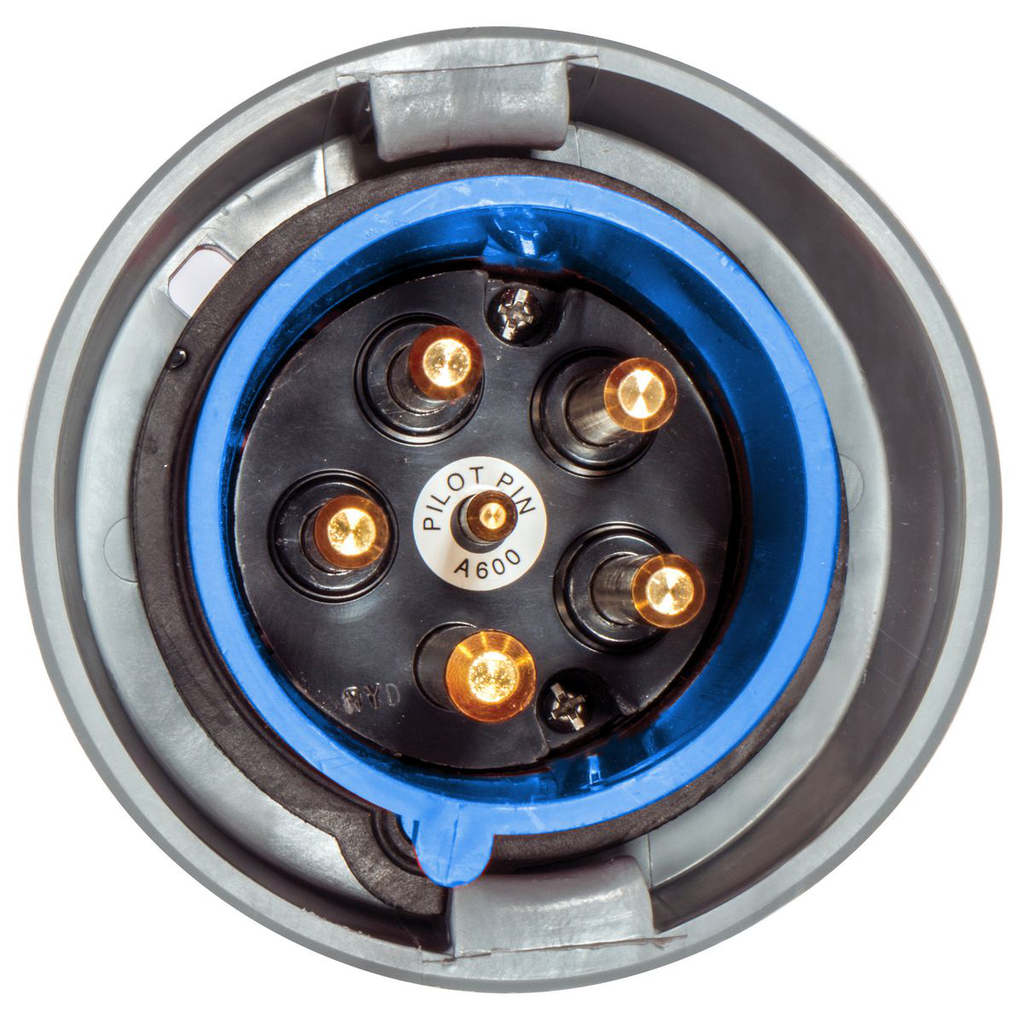

HWDK HBL360P6WP PLUG,2P3W,60A 250V/
$610.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL360P6WP
North Coast Part # 1825947

Features

  • Rugged one-piece housing
  • Thermoset polyester contact carrier
  • Solid one-piece pins for reliable electrical contact

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Male Plug
  • Material: Thermoplastic
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability -V-0 | Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Plug w/ Pilot Pin
  • UPC: 783585365350

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Connectivity: Pressure Terminal Screws
  • Dielectric Strength: Withstands 3000V Minimum in
  • Phase: Single Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC/220-250 VAC

Conductor Related

  • Cord Type: All Portable
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 4-Wire
  • Wire Size: #8 AWG to #2 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified File LR280C | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed to UL1682
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358536535
GTiN 00783585365350
Length 11.600 in
Width 5.500 in
Color Blue
Voltage 250 Volt
Type Plug w/ Pilot Pin
Material Thermoplastic
Number of Conductors 3
Product Series HBL Heavy Duty
Height 4.800 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Poles 3 Pole
Number of Wires 4
Standard CSA,File LR280C,IEC 60309-1 IEC 60309-2,UL,UL1682
Cord Type All Portable
Applications High Ampacity Watertight Connections
Wire Size 8-2 AWG
Environmental Conditions Watertight
