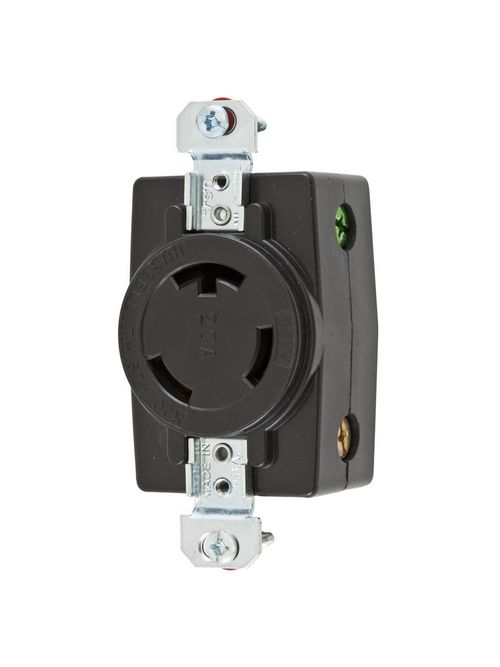

HWDK HBL3720 LKG RCPT, 20A 2P3W, 34
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$78.02/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL3720
North Coast Part # 602709

Features

  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.23 in x 1.7 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.7 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Amperage Rating: 20 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L24-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.23 in x 1.7 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Single Flush Receptacle
  • Voltage Rating: 347 VAC
  • Wattage: 6940 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 347 VAC
  • Width: 1.23 in

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585046587
Length 3.28 Inch
Width 1.23 in
Size Standard
Color Black
Voltage 347 Volt
Type Heavy Duty
Material Thermoplastic
Conductor Size 14-8 AWG
Applications Heavy Duty Industrial
Mounting Type Screw, Flush
Height 1.66 Inch
Grade Industrial
Weight 0.25 lb
Wire Size 16-8 AWG
Wattage 6940 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminal
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Twist-Lock
Product UPC 78358504658
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Country of Origin USA
