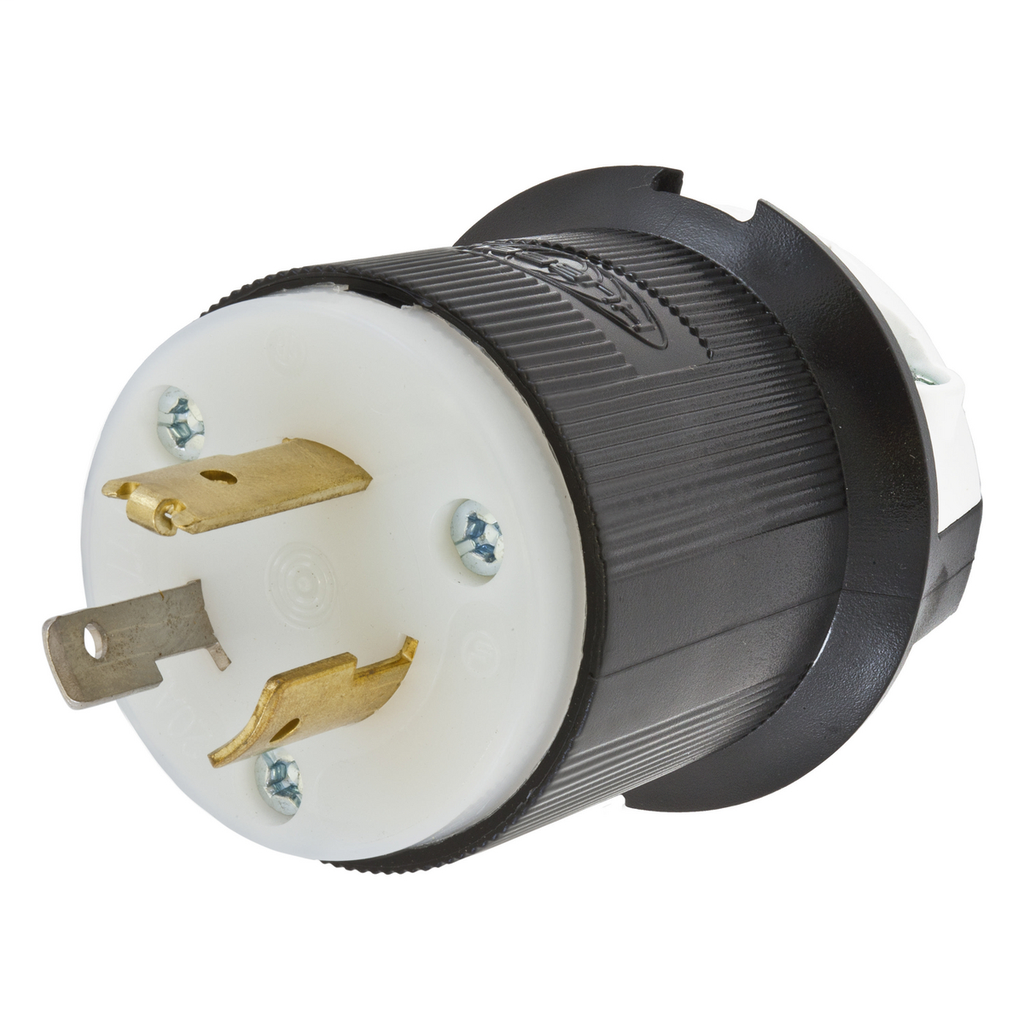

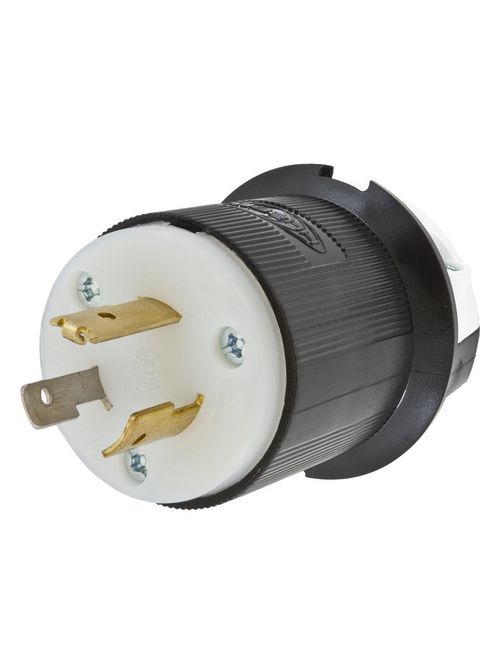

Hubbell Wiring Devices HBL3721 20 Amp 347 VAC 2-Pole 3-Wire NEMA L24-20P Black/White Nylon Locking Plug
$40.37/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL3721
North Coast Part # 551424

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.360"-0.930" (9-24)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Insulgrip Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • UPC: 783585046594

Dimensions

  • Dimensions: 2.75 in x 2.26 in x 2.26 in
  • Display Size: Standard Sized
  • Height: 2.26 in
  • Length: 2.75 in
  • Weight: 0.3 lb
  • Width: 2.26 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating Description: 347 VAC
  • Wattage: 6940 W

Conductor Related

  • Cable Range: 0.360 - 0.930 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L24-20P

Logistics

  • Carton Quantity: 30

Overview

UPC 78358504659
GTiN 00783585046594
Length 2.75 in
Width 2.26 in
Size Standard Sized Product
Color Black/White
Type Standard
Material Nylon
Conductor Size 12-10 AWG
Cord Type Portable
Applications For Extra Heavy Duty Industrial Applications
Mounting Type Cord
Height 2.26 in
Weight 0.3 lb
Wire Size 10-8 AWG
Wattage 6,940 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 20 A
Blade Dimensions 2-3/4 in L
Cord Size 0.36 - 0.93 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Insulgrip
Standard Fed.Spec. W-C-596,CSA C22.2 No.42,UL 498
Voltage null
