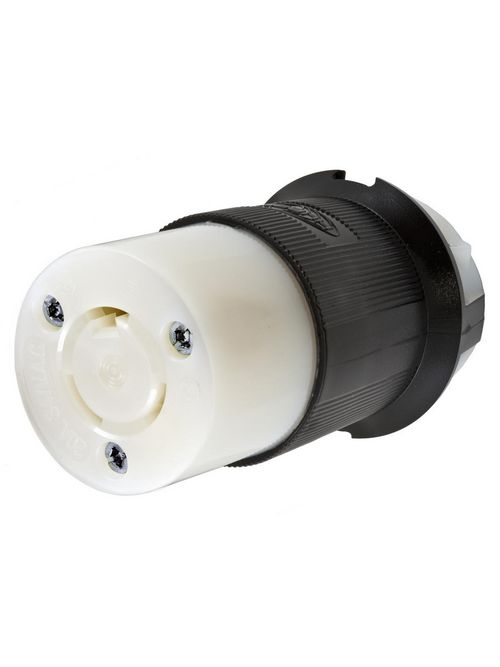

HWDK HBL3723 LKG CONN, 20A 2P3W, 34
Product image thumbnail 0
Product image thumbnail 1
$66.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL3723
North Coast Part # 551423

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.360"-0.930" (9-24)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 20A Insulgrip® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Connector Body
  • UPC: 783585046600

Dimensions

  • Dimensions: 2.26 in x 2.26 in x 3.86 in
  • Display Size: Standard
  • Height: 3.86 in
  • Length: 2.26 in
  • Weight: 0.4 lb
  • Width: 2.26 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 347 VAC
  • Voltage Rating Description: 347 VAC

Conductor Related

  • Cable Range: 0.360 - 0.930 in
  • Number Of Wires: 3-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L24-20R

Logistics

  • Carton Quantity: 30

Categories

Overview

UPC 78358504660
GTiN 00783585046600
Length 2.26 in
Width 2.26 in
Size Standard
Color Black and White
Voltage 347 Volt
Type Insulgrip, Heavy Duty
Material Composite
Number of Conductors 3-Wire Grounding
Conductor Size 12-10 AWG
Applications Heavy Duty Industrial
Mounting Type Cord, Surface
Height 3.86 in
Grade Industrial
Weight 0.4 lb
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
TC Connection Pressure Screw Terminal
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
