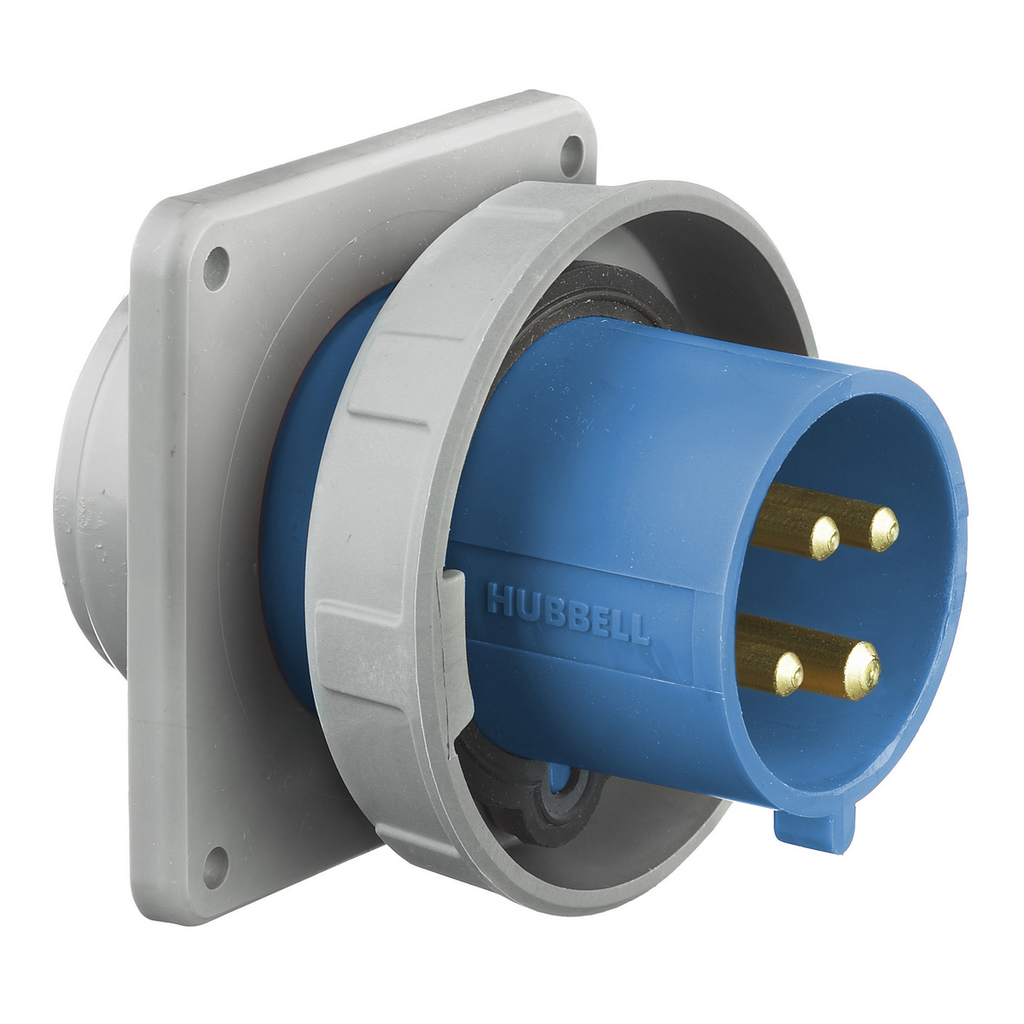

Hubbell Wiring Devices HBL4100B9W 100 Amp 250 Volt 3-Phase 3-Pole 4-Wire Watertight IEC Pin and Sleeve Inlet
Product image thumbnail 0
Product image thumbnail 1
$801.56/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4100B9W
North Coast Part # 10656

Features

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Single Flanged
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
  • Type: Watertight Inlet
  • UPC: 783585403960

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Dielectric Strength: Withstands 3000V Minimum in
  • Phase: Three Phase
  • Voltage Rating: 3 Phase 250 VAC
  • Voltage Rating Description: 3 Phase 250 VAC
  • Wattage: 25000

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified File LR280C | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146032
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 6

Categories

Overview

UPC 78358540396
GTiN 00783585403960
Length 7.000 in
Width 6.380 in
Size Standard Sized Product
Color Blue
Voltage 250 Volt
Type Single, Standard, Watertight
Material Thermoplastic
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Height 5.750 in
Wire Size 3-0 AWG
Wattage 25,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 6
TC Connection Pressure Screw Terminals
Current 100 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand IEC 309 Pin and Sleeve Devices
Conductor Size 3-1/0 AWG
Mounting Type Screw
Standard CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact
Dielectric Strength Withstands 3000V Minimum in
Environmental Conditions Watertight
