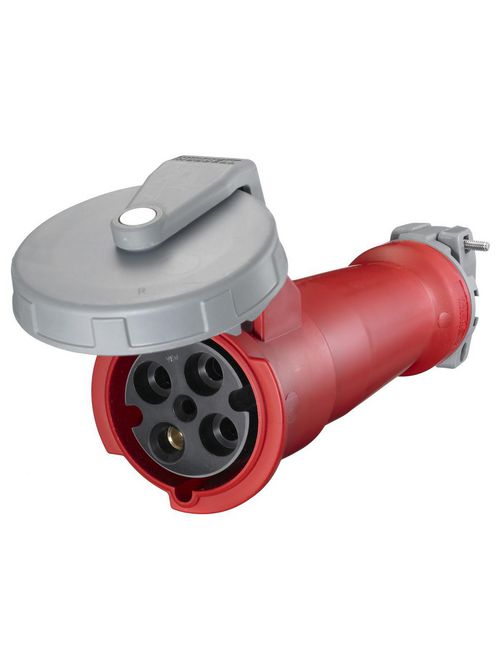

Hubbell Wiring Devices HBL4100C7W 100 Amp 480 Volt 3-Phase 3-Pole 4-Wire Watertight IEC Pin and Sleeve Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$876.83/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4100C7W
North Coast Part # 11178

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing

Specifications

General

  • Application: High Ampacity Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Standard
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector Body
  • UPC: 783585403991

Dimensions

  • Display Size: Standard

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Voltage Rating: 3 Phase 480 VAC
  • Voltage Rating Description: 3 Phase 480 VAC

Conductor Related

  • Conductor Range: #3 AWG to #1/0 AWG
  • Number Of Conductors: 4-Wire Grounding
  • Number Of Wires: 4-Wire

Certifications and Compliance

  • Industry Standard(s): CSA Certified File LR280C | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146033
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 6

Overview

UPC 78358540399
GTiN 00783585403991
Length 14.000 in
Width 6.250 in
Size Standard
Color Red
Voltage 480 Volt
Type Standard, Straight, Insulated, Watertight, 3-Pole
Material Composite
Number of Conductors 4
Conductor Size 3 - 1/0 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Connections
Height 5.250 in
Connection Type Pressure Screw Terminal
Temperature Rating 75 C Maximum Continuous, -40 C Minimum Continuous without impact, -25 C with Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 6
TC Connection Pressure Screw Terminal
Current 100 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve
Standard CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Environmental Conditions Watertight
