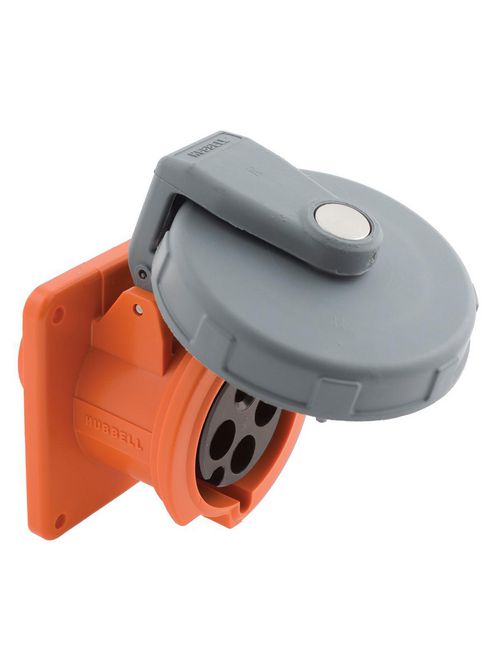

Hubbell Wiring Devices HBL4100R12W 100 Amp 125/250 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$607.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4100R12W
North Coast Part # 12690

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Orange
  • Environmental Conditions: Watertight
  • Item Type: Single Flanged
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Receptacle
  • UPC: 783585404080

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC
  • Wattage: 25000

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

  • Industry Standard(s): Listed To Standard UL1682
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 6

Overview

UPC 78358540408
GTiN 00783585404080
Length 7.000 in
Width 6.380 in
Size Standard Sized
Color Orange
Voltage 125 Volt
Type Single Flanged
Material Thermoplastic/Composite
Conductor Size 3 to 1/0 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Mounting Type Screw, External, Surface
Height 5.750 in
Wire Size 3-0 AWG
Wattage 25000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 6
Grounding Grounding
TC Connection Pressure Screw Terminals
Current 100 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve Devices
Standard Standard UL1682
