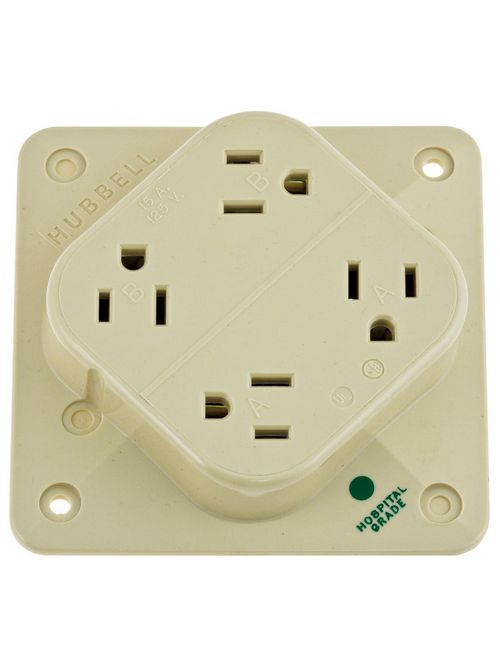

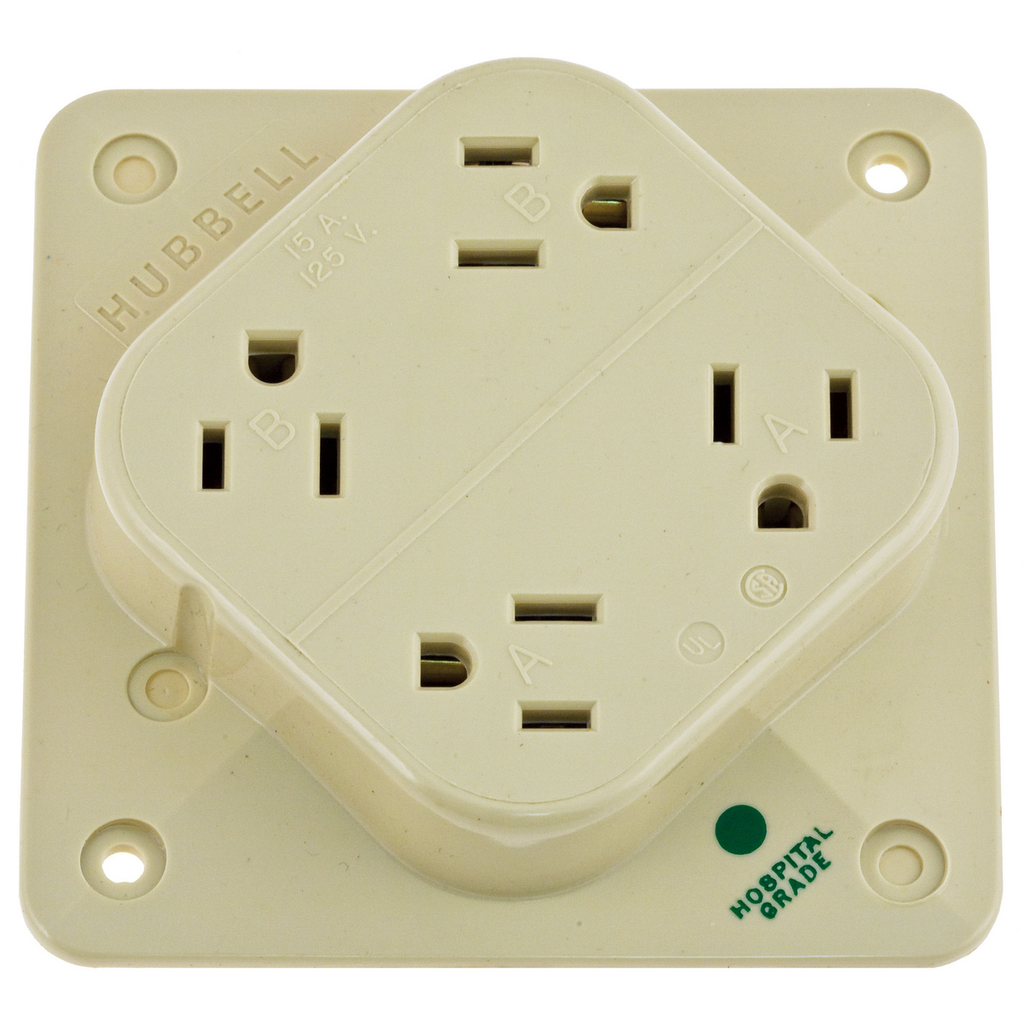

HWDK HBL415HI 4-PLEX HG RCPT, 15A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$43.50/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL415HI
North Coast Part # 10811

Features

  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • High impact resistant Polycarbonate construction

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 4.3 in x 4.3 in x 0.92 in
  • Each - Height: 1.480 in
  • Each - Length: 4.420 in
  • Each - Width: 4.420 in
  • Height: 0.92 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 4.3 in
  • Performance: Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#12 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: 4-Plex Hospital Grade
  • Color: Ivory
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 4.3 in x 4.3 in x 0.92 in
  • Special Features: High impact resistant Polycarbonate construction
  • Standard: Certified to CSA, C22.2, No. 42 File 285; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: 4-PLEX Receptacle
  • Voltage Rating: 125 VAC
  • Wattage: 1875 W
  • Wire Size: #14 AWG to #12 AWG
  • Voltage Rating Description: 125 V
  • Width: 4.3 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358501576
Item Long Description Straight Blade Devices, Receptacles, 4- Plex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.
GTiN 00783585015767
Length 4.3 in
Width 4.3 in
Size 4.3 in x 4.3 in x 0.92 in
Color Ivory
Voltage 125 Volt
Type 4-PLEX Receptacle
Material Polycarbonate
Conductor Size 14 - 12 AWG
Product Series 4-PLEX Receptacle
Applications Hospitals
Mounting Type Screw
Height 0.92 in
Grade Hospital
Weight 0.4 lb
Wire Size 14-12 AWG
Connection Type Back Wired
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Back Wired Screw Terminals
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2,CSA,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
