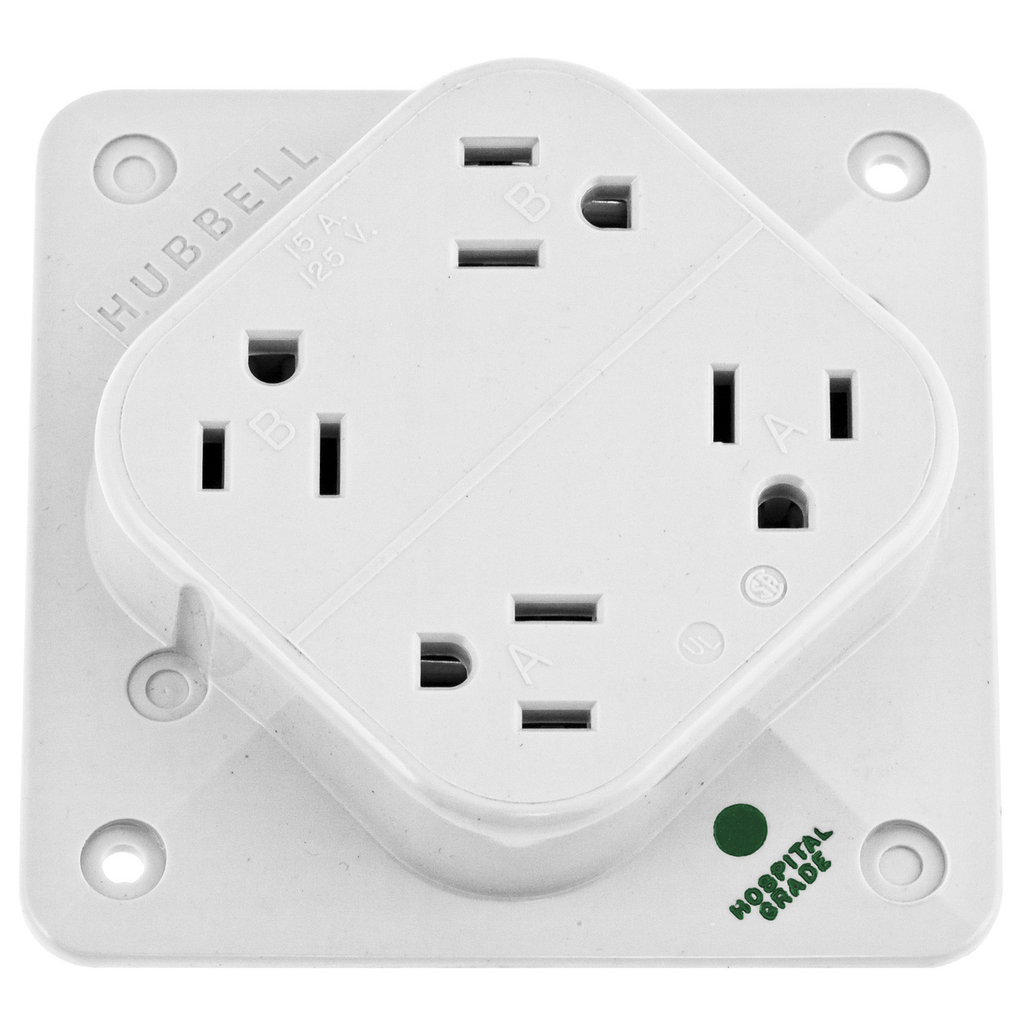

Hubbell Wiring Devices HBL415HW 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Straight Blade Receptacle
$42.46/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL415HW
North Coast Part # 10897

Features

  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets

Specifications

General

  • Application: 4-Plex Hospital Grade
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: 4-PLEX
  • Material: Polycarbonate
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498 | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#12 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: 4-PLEX Receptacle
  • Style: Smooth Face
  • Type: 4-PLEX Receptacle
  • UPC: 783585310671

Dimensions

  • Dimensions: 4.3 in x 4.3 in x 0.92 in
  • Display Size: Standard Sized Product
  • Height: 0.92 in
  • Length: 4.3 in
  • Weight: 0.4 lb
  • Width: 4.3 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 5

Categories

Overview

UPC 78358531067
GTiN 00783585310671
Length 4.3 in
Width 4.3 in
Size Standard
Color White
Voltage 125 Volt
Type Straight Blade
Material Polycarbonate
Conductor Size 14-12 AWG
Product Series 4-PLEX Receptacle
Applications 4-Plex Hospital Grade
Mounting Type Screw, Surface
Height 0.92 in
Grade Hospital
Weight 0.4 lb
Wire Size 14-12 AWG
Connection Type Back Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Back Wired Screw Terminals
Current 15 A
Blade Dimensions 109 mm W x 109 mm H
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand 4-Plex
Standard C22.2,CSA,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
