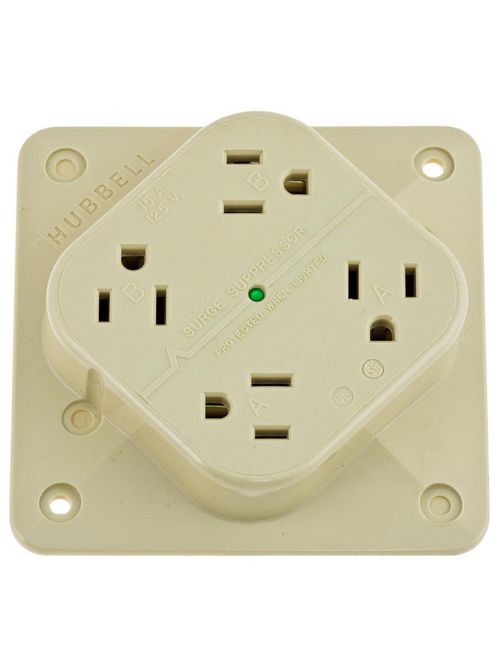

HCI HBL415IS 4-PLEX SPD RCPT, 15A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$95.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL415IS
North Coast Part # 10946

Features

  • Surge supression with lights, 80 joules/6500A per mode
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets

Specifications

General

  • Application: 4-Plex with LED
  • Color: Ivory
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Indicator(s) Type: LED Only
  • Item Type: Surge Protection Receptacles
  • Material: Polycarbonate
  • Material - Mounting Hardware: Mounting Screws
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Outlet: Straight Blade
  • Performance: Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498 | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-12 AWG stranded or solid copper conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Response Time: 5
  • Series: 4-Outlet Receptacle
  • UPC: 783585017860

Dimensions

  • Dimensions: 4.30 in x 0.92 in x 4.30 in
  • Display Size: Standard
  • Height: 4.30 in
  • Length: 4.30 in
  • Weight: 0.35 lb
  • Width: 0.92 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Terminal Screws
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Frequency Rating: 60 Hz
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Listed to UL Standard 498 File E2186 | NEMA® WD-6 Compliant
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 5

Overview

UPC 78358501786
GTiN 00783585017860
Length 4.30 in
Width 0.92 in
Size Standard
Color Ivory
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Voltage 125 Volt
Type Standard
Material Polycarbonate
Product Series 4,Outlet Receptacle
Applications For 4-Plex with LED Applications
Height 4.30 in
Weight 0.35 lb
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Terminal Screws
Current 15 A
Response Time 5n s
Number of Poles 2 Pole
Number of Wires 3
Sub Brand SpikeShield
Mounting Type Screw
Standard CSA 22.2,NEMA WD-6,No. 42 File 285,UL Standard 498 File E2186
Temperature Rating 32 - 140 F
