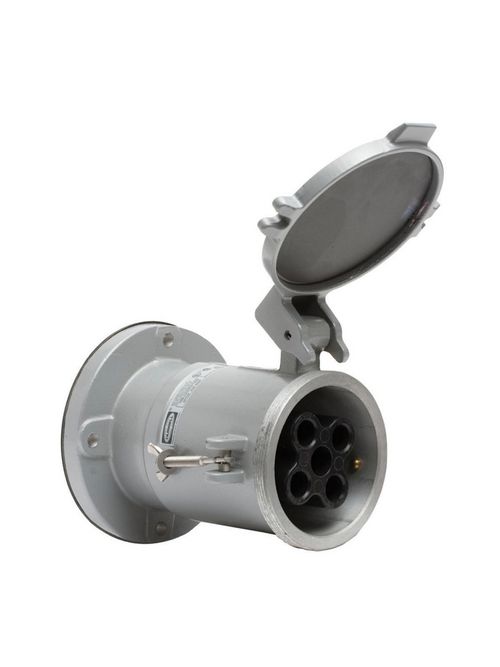

Hubbell Wiring Devices HBL4200RS2W 200 Amp 600 VAC 250 VDC 3-Pole 4-Wire Style II Watertight IEC Pin and Sleeve Receptacle
Product image thumbnail 0
Product image thumbnail 1
$1,478.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4200RS2W
North Coast Part # 214445

Features

  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber

Specifications

General

  • Application: Metallic with Nylon Shroud
  • Environmental Conditions: Watertight
  • Item Type: Single Flanged-Reversed
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 | Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 | Environmental - Operating Temperatures - Max. Continuous 75°C | Min. -40°C w/o impact -25° with impact | Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 | Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Series: UL 1686 Class 1 Insulgrip®
  • Style: Standard Service,Style 2 Grounding
  • Type: Watertight Receptacle
  • UPC: 783585011509

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 200 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 200 A
  • Current Rating: 200 A
  • Phase: Single/Three
  • Voltage Rating: 600 VAC/250 VDC
  • Voltage Rating Description: 600V AC/250V DC
  • Wattage: 120000

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #2 AWG to #4/0 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 182.1 | UL Listed and CSA Certified Type 4X | UL Standard 1682
  • Nema Rating: Non-NEMA

Overview

UPC 78358501150
GTiN 00783585011509
Length 9.900 in
Width 7.000 in
Size Standard Sized Product
Color Black/Gray
Voltage 250 Volt
Type Single Flanged-Reversed
Material Thermoplastic
Conductor Size 4/0-2 AWG
Product Series UL 1686 Class 1 Insulgrip
Applications High Ampacity Connections
Mounting Type Screw
Height 7.300 in
Wire Size 2-0000 AWG
Wattage 120000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 200 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve Devices
Standard CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
