Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing

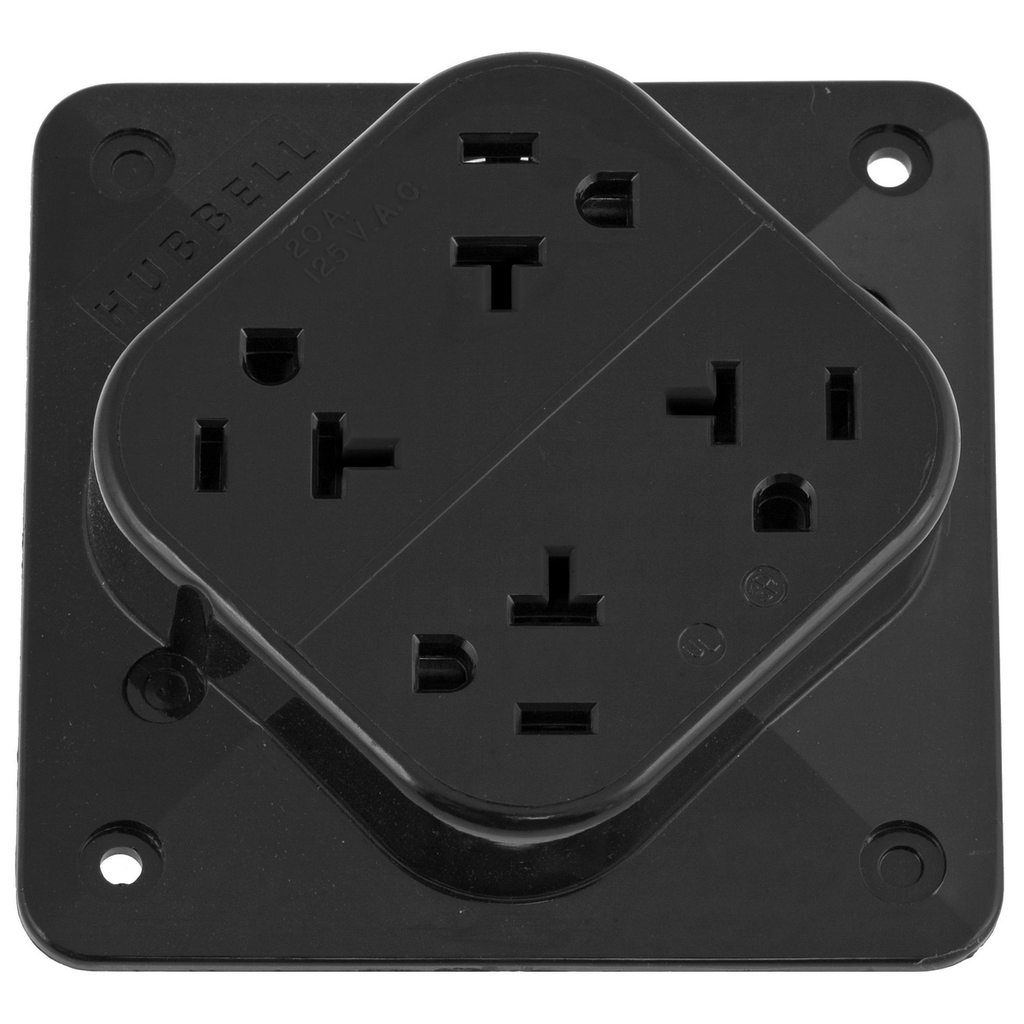

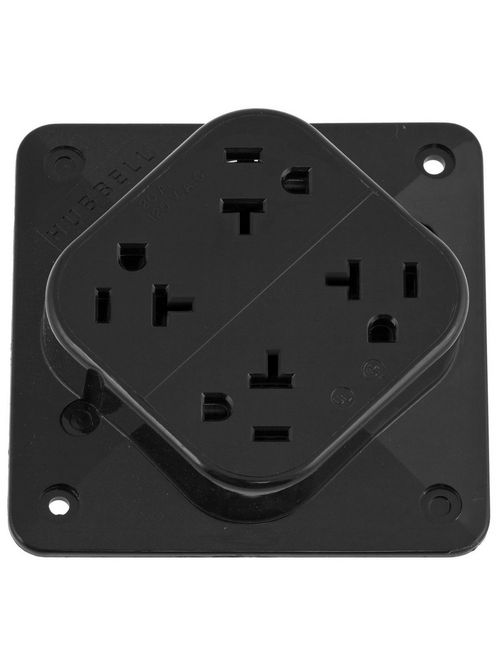

Manufacturer Hubbell / Kellems
Mfg Catalog # HBL420BK
North Coast Part # 13939


  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets



  • Application: Industrial
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: 4-PLEX
  • Material: Polycarbonate
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 | Dielectric Voltage: Withstands 2,000V minimum | Mechanical: Product Identification: Ratings are a permanent part of the device | Terminal Accommodation: #12 AWG stranded or solid copper conductor only | Terminal Identification: Terminals identified in accordance with UL 498 and CSA | Environmental: Flammability: UL 94 V-2 | Operating Temperatures: Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: 4-Outlet Receptacle
  • UPC: 783585014524


  • Dimensions: 4.30 in x 0.92 in x 4.30 in
  • Display Size: Standard Sized Product
  • Height: 4.30 in
  • Length: 4.30 in
  • Weight: 0.4 lb
  • Width: 0.92 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Listed to UL Standard 498 File E2186 | NEMA® WD-6 Compliant
  • Nema Rating: 5-20R


  • Carton Quantity: 5


UPC 78358501452
GTiN 00783585014524
Length 4.30 in
Width 0.92 in
Size Standard
Color Black
Voltage 125 Volt
Type 4-PLEX
Material Thermoplastic
Product Series 4,Outlet Receptacle
Applications For Industrial Use
Height 4.30 in
Weight 0.4 lb
Wire Size 12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand 4-Plex
Conductor Size 14-12 AWG
Mounting Type Screw
Standard CSA 22.2,NEMA WD-6,No. 42 File 285,UL Standard 498 File E2186
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
