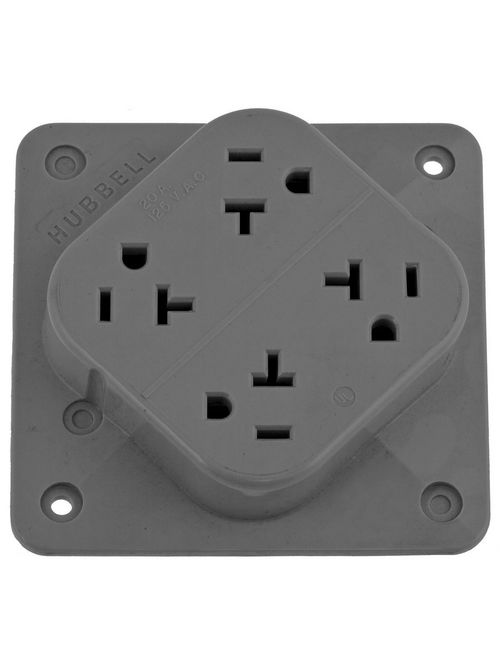

HWDK HBL420GY 4-PLEX RCPT, 20A 125V

Features

• Anchor hole and loop feature secures solid wire for fast, easy terminations
• Triple wipe contacts
• Easily accessible break-off tabs for split wiring
• Three conductors energize all four outlets

Specifications

General

• Application: Industrial
• Color: Gray
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 1
• Item Type: 4-PLEX
• Material: Polycarbonate
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 | Dielectric Voltage: Withstands 2,000V minimum | Mechanical: Product Identification: Ratings are a permanent part of the device | Terminal Accommodation: #12 AWG stranded or solid copper conductor only | Terminal Identification: Terminals identified in accordance with UL 498 and CSA | Environmental: Flammability: UL 94 V-2 | Operating Temperatures: Maximum continuous 75°C | minimum -40°C (w/o impact)
• Series: 4-Outlet Receptacle
• UPC: 783585014531

Dimensions

• Dimensions: 4.30 in x 0.92 in x 4.30 in
• Display Size: Standard Sized Product
• Height: 4.30 in
• Length: 4.30 in
• Weight: 0.4 lb
• Width: 0.92 in

Electrical Ratings

• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500 W

Conductor Related

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG

Certifications and Compliance

• Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Listed to UL Standard 498 File E2186 | NEMA® WD-6 Compliant
• Nema Rating: 5-20R

Logistics

• Carton Quantity: 5
