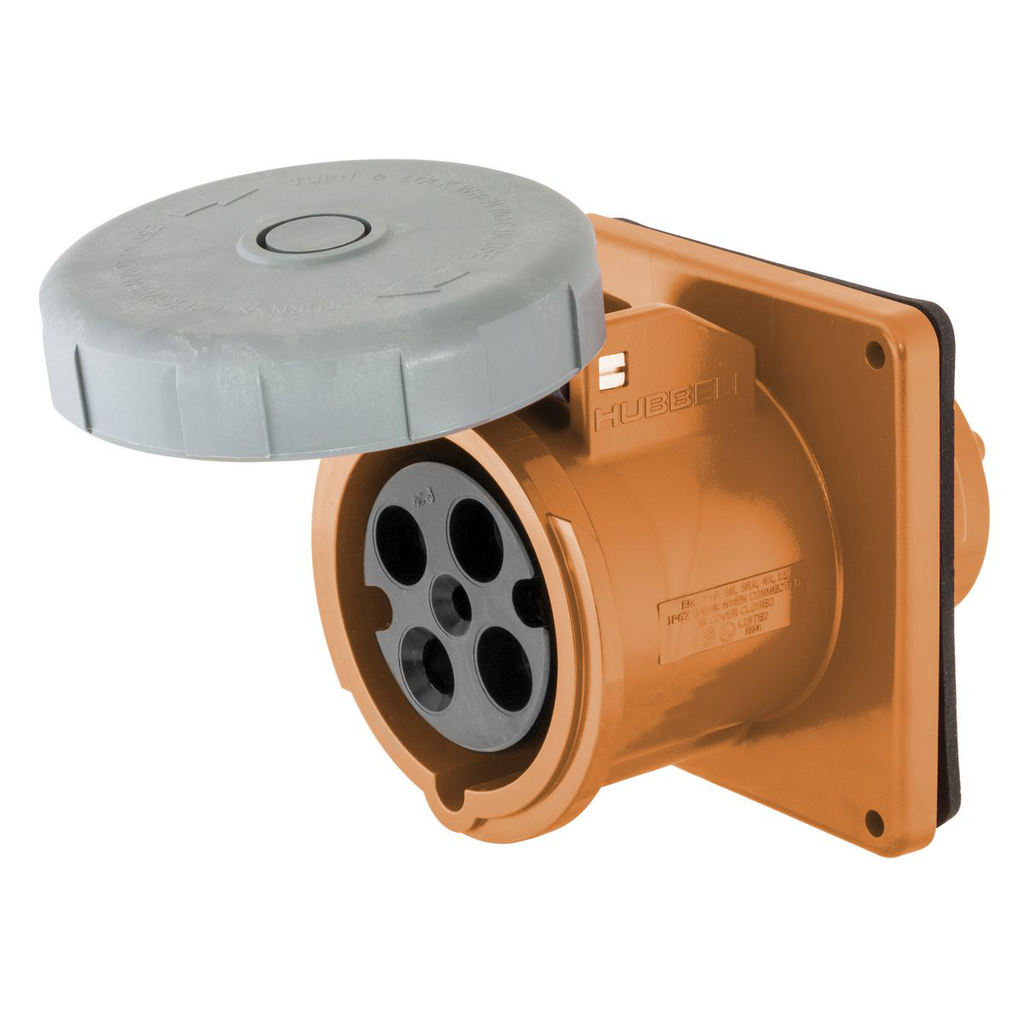

HCI HBL420R12W PS, IEC, RECP, 3P4W,
$232.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL420R12W
North Coast Part # 159649

Features

  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Orange
  • Environmental Conditions: Watertight
  • Item Type: Single Flanged
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Receptacle
  • UPC: 783585404400

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC
  • Wattage: 5000

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA StandardC22.2 No. 182.1 | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146032
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358540440
GTiN 00783585404400
Length 4.430 in
Width 4.370 in
Size Standard Sized Product
Color Orange
Voltage 125 Volt
Type Single Flanged
Material Thermoplastic/Composite
Conductor Size 14 - 10 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Mounting Type Screw
Height 4.060 in
Wire Size 14-10 AWG
Wattage 5000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Grounding
TC Connection Pressure Screw Terminals
Current 20 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4
Sub Brand IEC 309 Pin and Sleeve Devices
Standard CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
