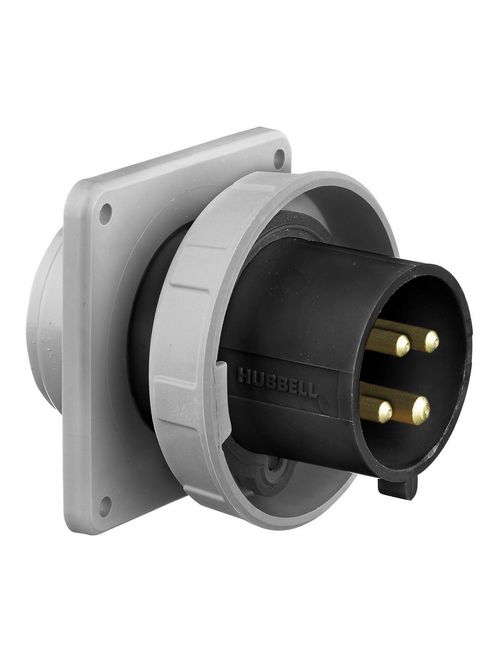

HWDK HBL430B5W PS, IEC, INLET, 3P4W
Product image thumbnail 0
Product image thumbnail 1
$464.71/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL430B5W
North Coast Part # 1010534

Features

  • Rugged one-piece housing
  • Thermoset polyester contact carrier
  • Solid one-piece pins for reliable electrical contact

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Black
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Single Flanged
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1. | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
  • Type: Watertight Inlet
  • UPC: 783585404462

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 3000V Minimum in
  • Phase: Three Phase
  • Voltage Rating: 3 Phase 600 VAC
  • Voltage Rating Description: 3 Phase 600 VAC
  • Wattage: 18000

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified File LR280C | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146032
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358540446
GTiN 00783585404462
Length 4.430 in
Width 4.370 in
Size Standard Sized Product
Color Black
Voltage 600 Volt
Type Watertight Inlet
Material Thermoplastic
Number of Conductors 4
Conductor Size 12-10 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Height 4.060 in
Wire Size 12-10 AWG
Connection Type Screw Terminal
Wattage 18000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 3
TC Connection Pressure Screw Terminals
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand IEC 309 Pin and Sleeve Devices
Standard CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact
Dielectric Strength Withstands 3000V Minimum in
Environmental Conditions Watertight
