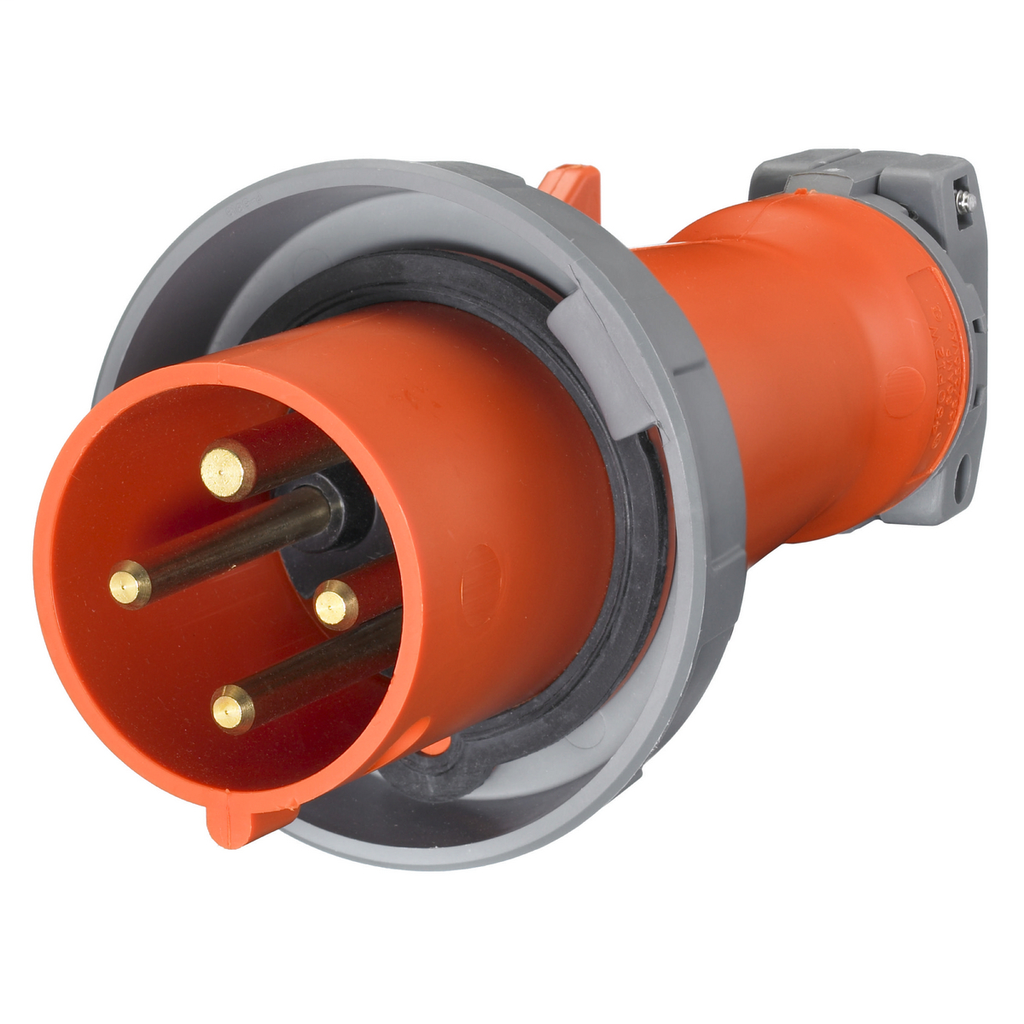

Hubbell Wiring Devices HBL430P12W 30 Amp 125/250 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Plug

Features

• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring provides watertight seal
• Heavy duty external cord grips

Specifications

General

• Application: High Ampacity Connections
• Color: Orange
• Environmental Conditions: Watertight
• Item Type: Male Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC Min | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperature - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
• Series: HBL Heavy Duty
• Style: Standard Service
• Type: Watertight Plug
• UPC: 783585404561

Dimensions

• Display Size: Standard Sized

Electrical Ratings

• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC

Conductor Related

• Cord Type: All Portable
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

• Industry Standard(s): CSA Standard C22.2 No. 182.1 | UL Classified to IEC60309-1 | UL Listed, File E146032
• Nema Rating: Non-NEMA

Logistics

• Carton Quantity: 10
