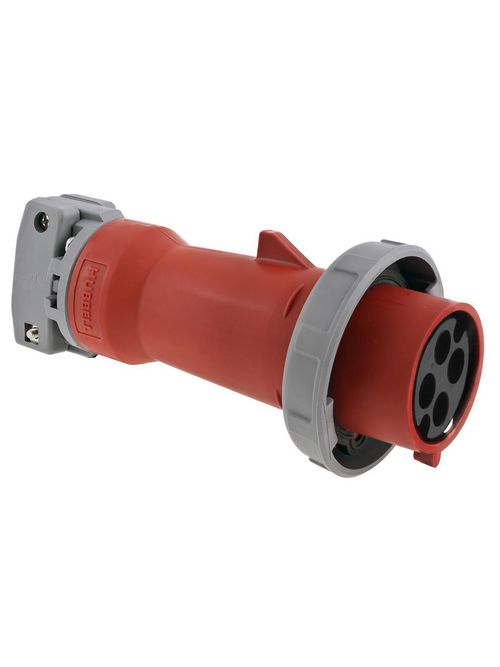

Hubbell Wiring Devices HBL430P7WR 30 Amp 480 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Plug
Product image thumbnail 0
Product image thumbnail 1
$369.14/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL430P7WR
North Coast Part # 18629

Features

  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips

Specifications

General

  • Color: Red
  • Environmental Conditions: Watertight
  • Item Type: Male Plug- Reversed
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC Min | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperature - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: Unfused Circuit-Lock
  • Style: Reverse Service
  • Type: Mating Plug
  • UPC: 783585012704

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase 480 VAC
  • Voltage Rating Description: 3 Phase 480 VAC

Conductor Related

  • Cord Type: All Portable
  • Number Of Wires: 4-Wire
  • Wire Size: #12 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Standard C22.2 No. 182.1 | UL Classified to IEC60309-1 | UL Listed, File E146032
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501270
GTiN 00783585012704
Length 9.000 in
Width 4.300 in
Size Standard Sized
Color Red
Voltage 480 Volt
Type Standard Sized, Male, Reversed
Material Composite
Product Series Unfused Circuit,Lock
Cord Type Portable
Applications High Ampacity Connections
Height 4.250 in
Wire Size 12-8 AWG
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Terminal Screws
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve Devices
Conductor Size 12-8 AWG
Mounting Type Cord
Standard CSA Standard C22.2 No. 182.1,File E146032,IEC60309-1,UL
Environmental Conditions Watertight
