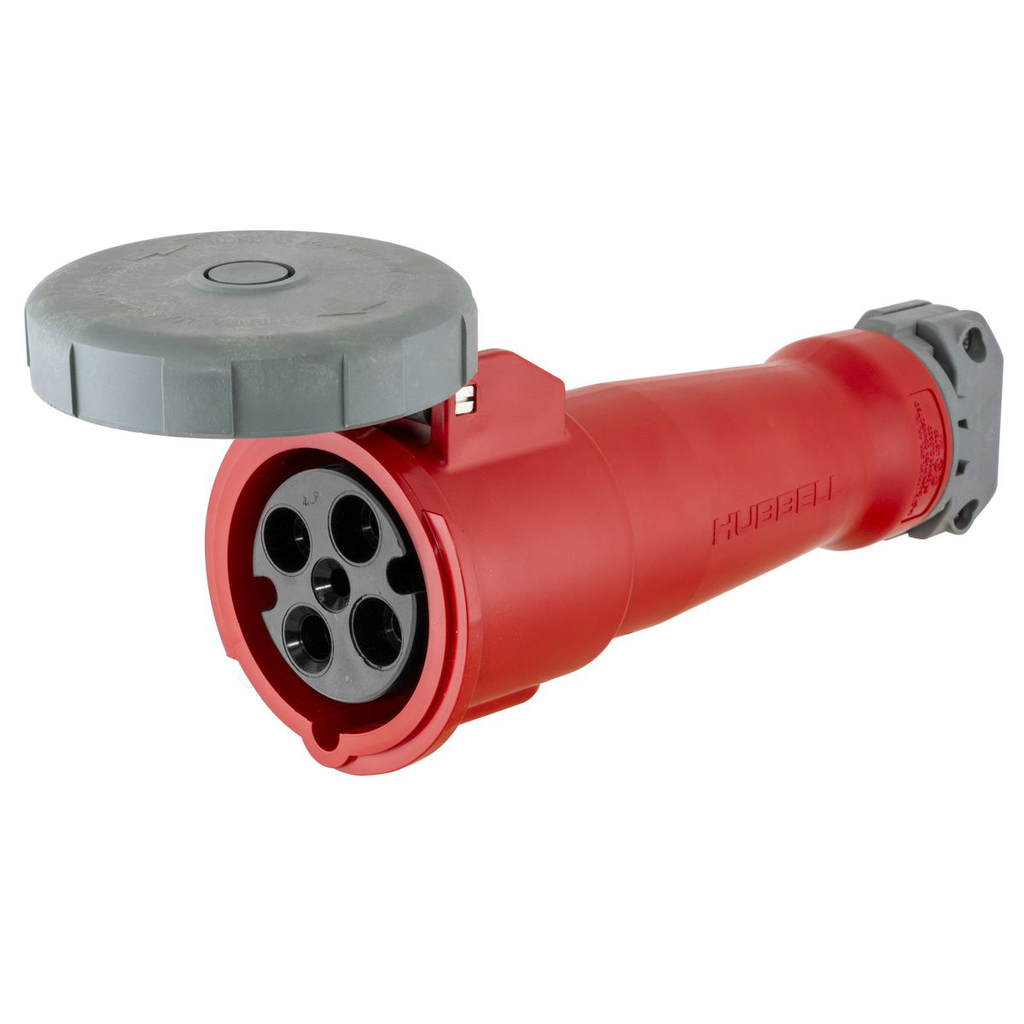

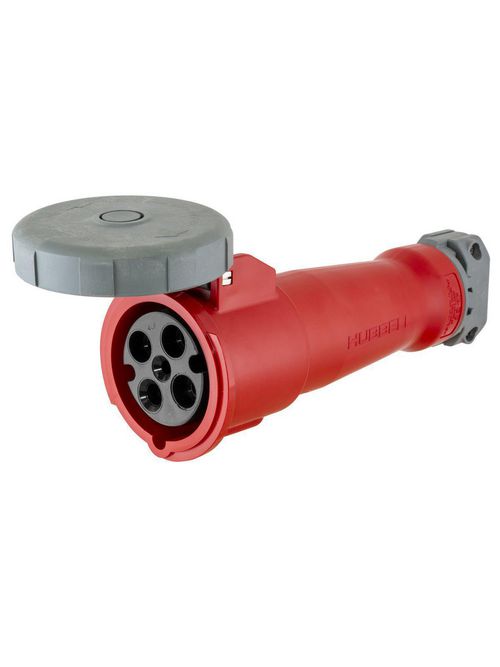

HCI HBL432C6W PS, IEC, CONN, 3P4W,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$332.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL432C6W
North Coast Part # 347423

Features

  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 32 A
  • Each - Height: 4.120 in
  • Each - Length: 9.810 in
  • Each - Width: 4.810 in
  • Industry Standard(s): CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 32 A
  • Application: High Ampacity Connections
  • Color: Red
  • Conductor Range: #12 AWG to #8 AWG
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • NEMA Rating: Non-NEMA
  • Number of Conductors: 4-Wire Grounding
  • Number of Poles: 3-Pole
  • Special Features: Watertight
  • Standard: CSA Certified File LR280C; UL Classified to IEC 60309-1 IEC 60309-2; UL Listed, File E146033
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector Body
  • Voltage Rating: 380-415 VAC
  • Voltage Rating Description: 380-415 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540468
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 32A 380/415V, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
GTiN 00783585404684
Length 9.810 in
Width 4.810 in
Size Standard
Color Red
Voltage 380-415 Volt
Type Standard
Number of Conductors 4-Wire Grounding
Product Series HBL Heavy Duty
Applications High Ampacity Connections
Height 4.120 in
Temperature Rating -40 to 75/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminal
Current 32 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve
Standard CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
