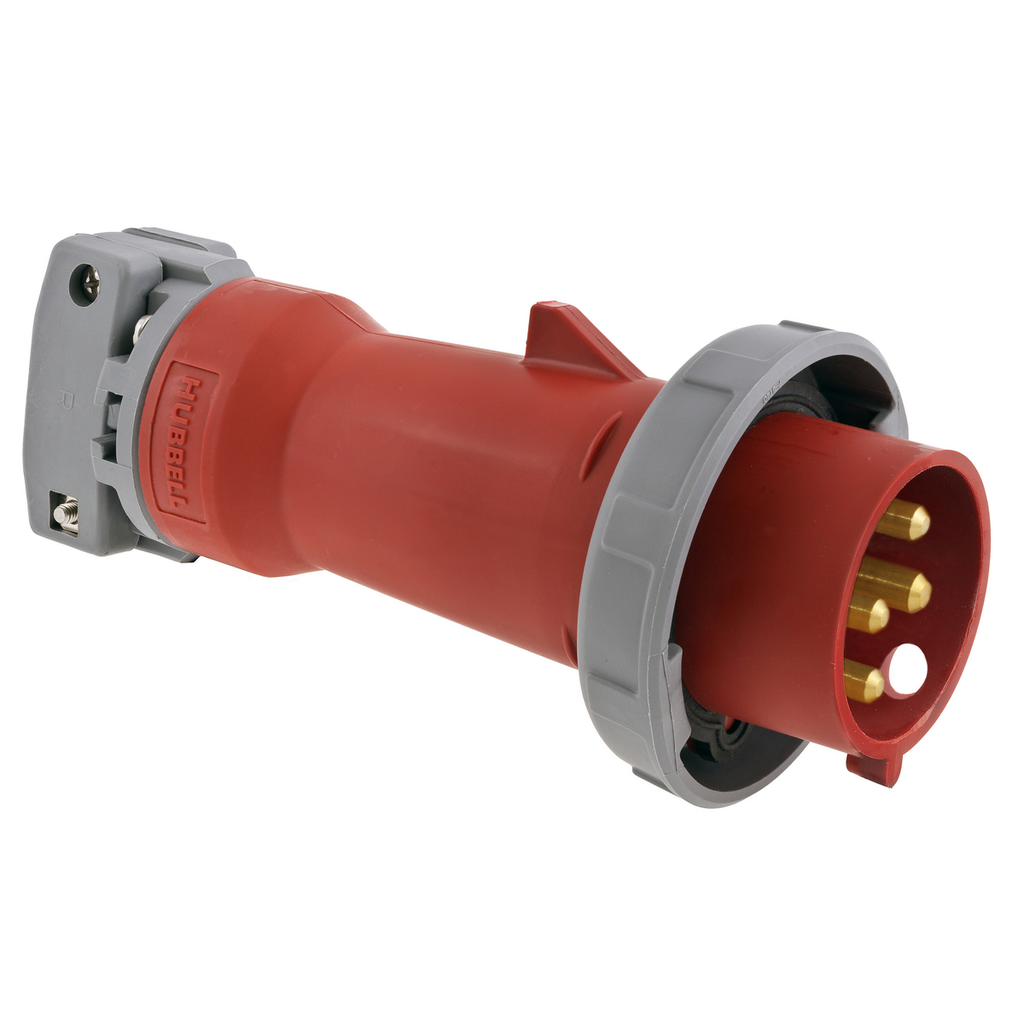

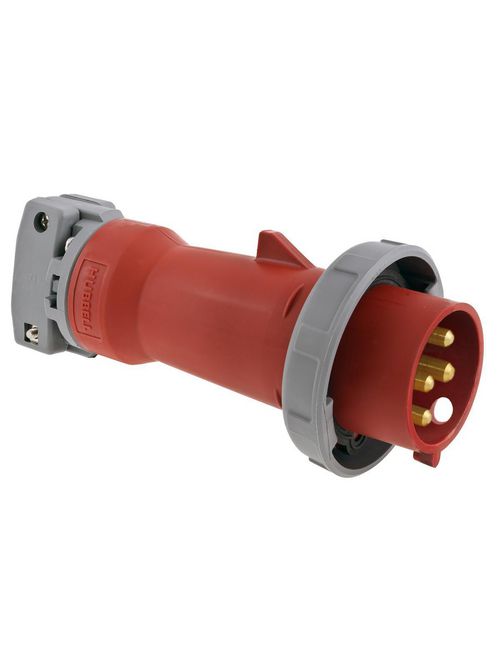

HCI HBL432P3W PS, IEC, PLUG, 3P4W,
$341.72/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL432P3W
North Coast Part # 216940

Features

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips

Specifications

General

  • Application: High Ampacity Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • Item Type: Male Plug
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC Min | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperature - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Plug
  • UPC: 783585404691

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Amperage Rating: 32 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 32 A
  • Current Rating: 32 A
  • Phase: Single Phase
  • Voltage Rating: 380 V 50Hz/440 V 60Hz V
  • Voltage Rating Description: 380 V 50Hz/440 V 60Hz

Conductor Related

  • Cord Type: All Portable
  • Number Of Wires: 4-Wire
  • Wire Size: #12 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Standard C22.2 No. 182.1 | UL Classified to IEC60309-1 | UL Listed, File E146032
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358540469
GTiN 00783585404691
Length 9.000 in
Width 4.300 in
Size Standard Sized
Color Red
Voltage 380 Volt
Type Male, Straight
Material Plastic
Product Series HBL Heavy Duty
Cord Type Portable
Applications High Ampacity Connections
Height 4.250 in
Wire Size 12-8 AWG
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Terminal Screws
Current 32 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve Devices
Conductor Size 12-8 AWG
Mounting Type Cord
Standard File E146032,CSA Standard C22.2 No. 182.1,UL,IEC60309-1
Environmental Conditions Watertight
