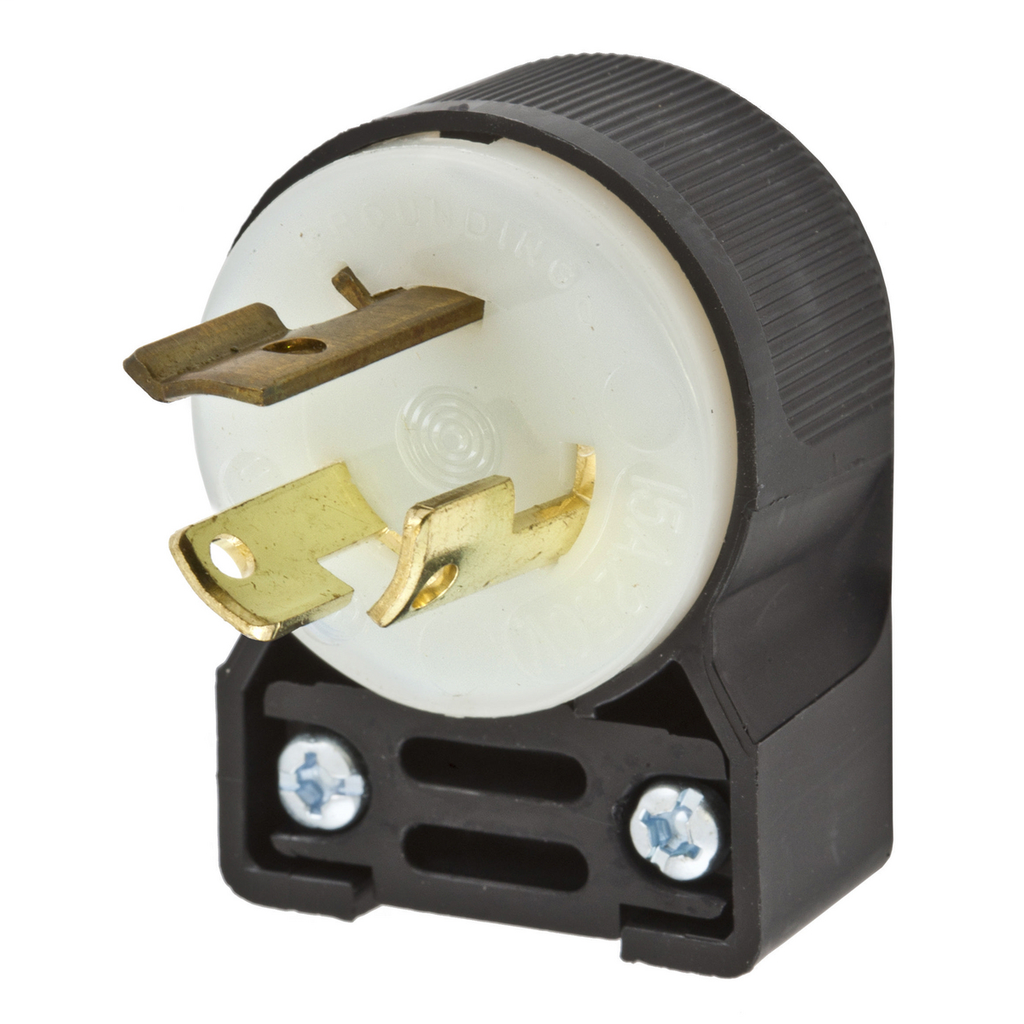

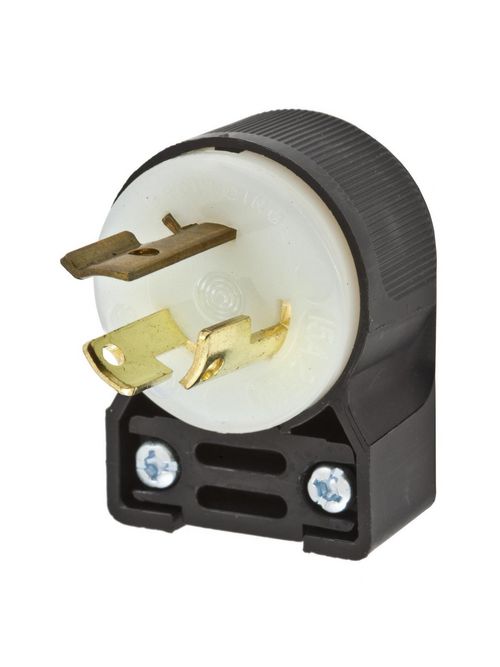

Hubbell Wiring Devices HBL4570CA 15 Amp 250 Volt Black/White L6-15P Locking Angled Plug
$31.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4570CA
North Coast Part # 156433

Features

  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip that’s impact and chemical resistant

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.325"-0.655"(8.3-16.6)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1.5
  • Item Type: 15A Grounding Insulgrip® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585170053

Dimensions

  • Dimensions: 2.08 in x 1.52 in x 1.21 in
  • Display Size: Standard Sized
  • Height: 1.21 in
  • Length: 2.08 in
  • Weight: 0.15 lb
  • Width: 1.52 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V
  • Wattage: 3750 W

Conductor Related

  • Cable Range: 0.325 - 0.655 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L6-15P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358517005
GTiN 00783585170053
Length 2.08 in
Width 1.52 in
Size Standard Sized Product
Color Black/White
Voltage 250 Volt
Type Standard Sized
Material Nylon
Conductor Size 16-8 AWG
Cord Type Portable
Applications Extra Heavy Duty Industrial
Mounting Type Cord
Height 1.21 in
Weight 0.15 lb
Wire Size 14-12 AWG
Wattage 3,750 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 15 A
Blade Dimensions 2.08 in L x 1.52 in W x 1.21 in H
Cord Size 0.325 - 0.655 in
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Insulgrip
Standard Fed.Spec. W-C-596,UL 498,CSA C22.2 No.42
