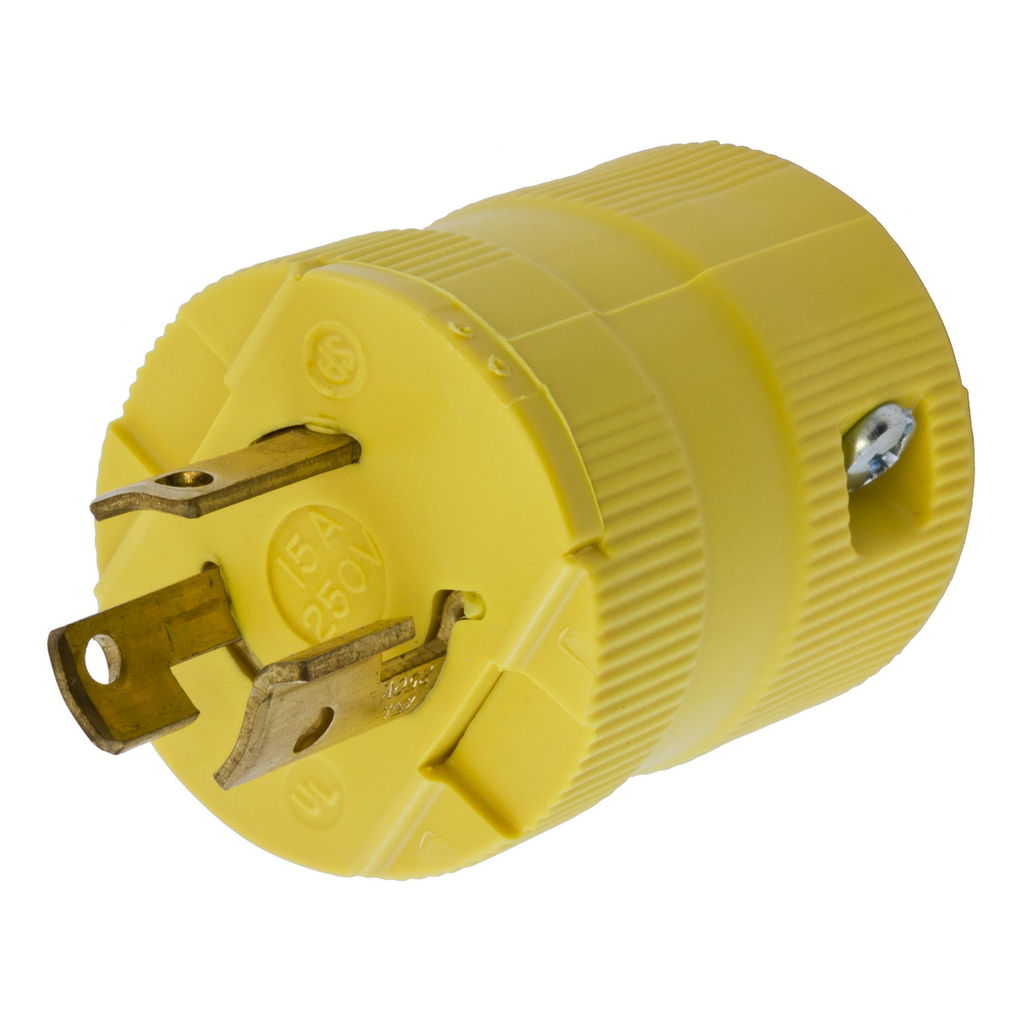

HWDK HBL4573VY LKG VAL PLUG, 15A 25
$14.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4573VY
North Coast Part # 160546

Features

  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Yellow
  • Cord Range: 0.220"-0.660"(5.6-16.8)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1.5
  • Item Type: 15A Valise® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG - #12 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585236650

Dimensions

  • Dimensions: 1.50 in x 1.50 in x 1.87 in
  • Display Size: Standard Sized
  • Height: 1.87 in
  • Length: 1.50 in
  • Weight: 0.10 lb
  • Width: 1.50 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC
  • Wattage: 3750 W

Conductor Related

  • Cable Range: 0.220 - 0.660 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L6-15P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523665
GTiN 00783585236650
Length 1.50 in
Width 1.50 in
Size Standard Sized Product
Color Yellow
Voltage 250 Volt
Type Standard Sized
Material Nylon
Cord Type Portable
Applications Power Connection
Height 1.87 in
Weight 0.10 lb
Wire Size 14-12 AWG
Wattage 3,750 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Valise
Conductor Size 14-12 AWG
Mounting Type Cord
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
