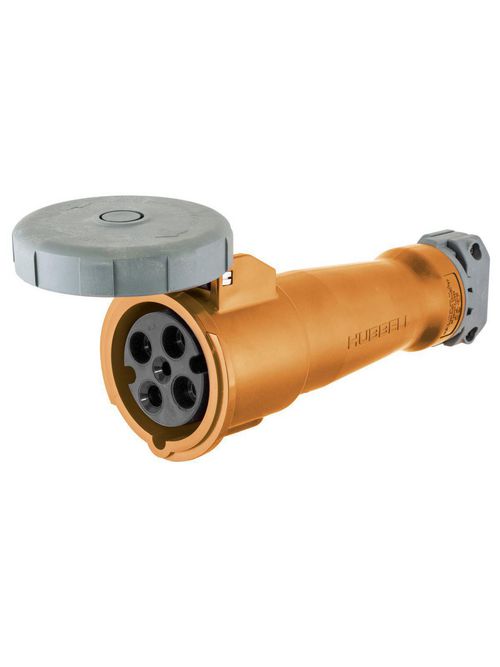

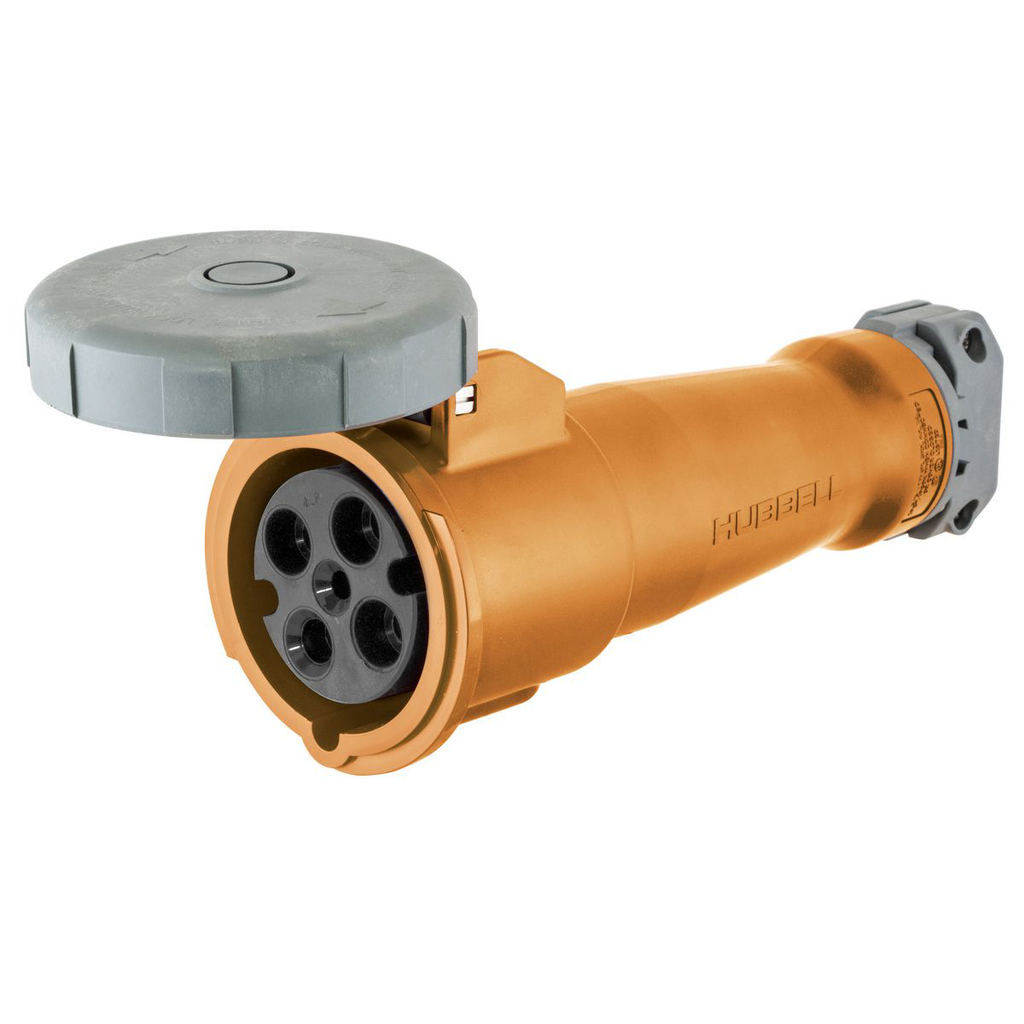

Hubbell Wiring Devices HBL460C12W IEC 125/250 Volt 60 Amp 3-Pole 4-Wire Watertight Pin and Sleeve Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$642.63/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL460C12W
North Coast Part # 13790

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 60 A
  • Each - Height: 5.000 in
  • Each - Length: 11.750 in
  • Each - Width: 5.750 in
  • Industry Standard(s): CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 60 A
  • Application: High Ampacity Connections
  • Color: Orange
  • Conductor Range: #8 AWG to #2 AWG
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • NEMA Rating: Non-NEMA
  • Number of Conductors: 4-Wire Grounding
  • Number of Poles: 3-Pole
  • Special Features: Watertight
  • Standard: CSA Certified File LR280C; UL Classified to IEC 60309-1 IEC 60309-2; UL Listed, File E146033
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector Body
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540478
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange, Watertight
GTiN 00783585404783
Length 11.750 in
Width 5.750 in
Size Standard
Color Orange
Voltage 125 Volt
Type Standard, IEC, Straight Angled
Material Composite
Number of Conductors 4-Wire Grounding
Conductor Size 8-2 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Connections
Mounting Type Cord
Height 5.000 in
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminal
Current 60 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4-Wire Grounding
Sub Brand Pin and Sleeve
Standard CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
