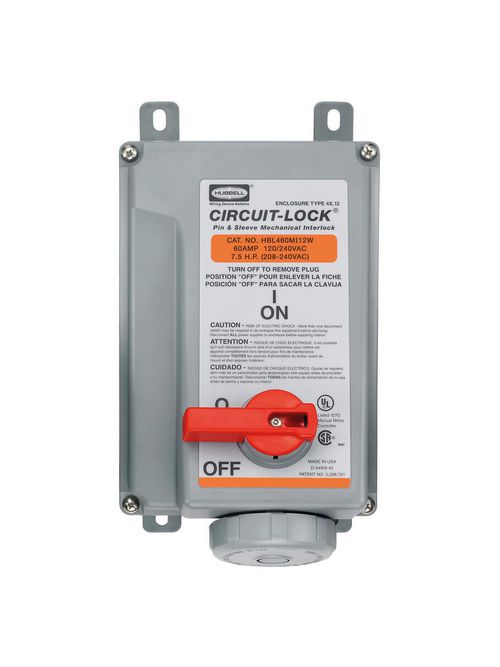

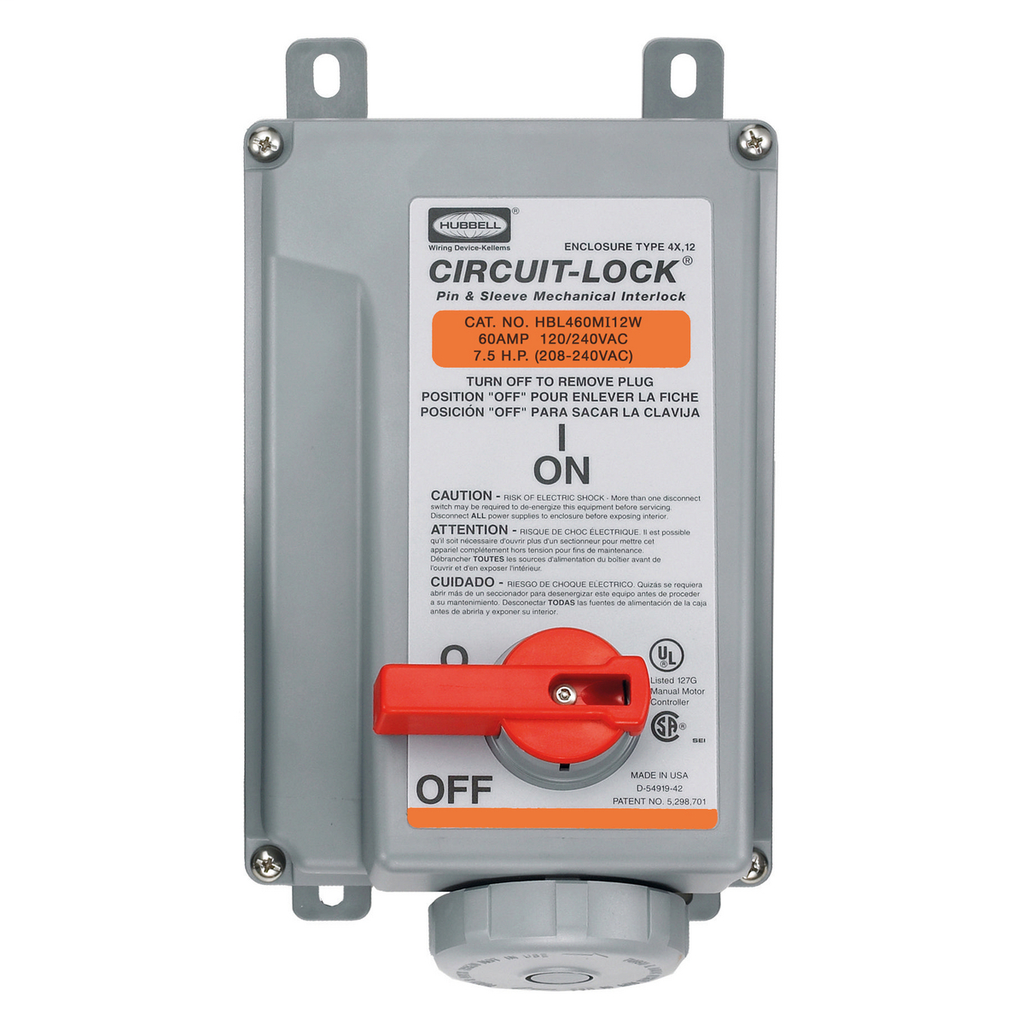

HCI HBL460MI12WR PS, IEC, MECHINT,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,081.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL460MI12WR
North Coast Part # 161715

Features

  • Captured neoprene gasket for a watertight seal
  • DIN rail mounted switch for easy installation and replacement
  • Solid pins for longer life and reliable electrical contact
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 60 A
  • Each - Height: 7.400 in
  • Each - Length: 14.900 in
  • Each - Width: 8.800 in
  • Industry Standard(s): UL Listed
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 60 A
  • Application: High Ampacity Watertight Connections
  • Color: Orange
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire
  • Phase: Single Phase
  • Special Features: Watertight
  • Standard: UL Listed
  • Type: Mechanical Interlock
  • Voltage Rating: 120/240 VAC
  • Wattage: 15000
  • Wire Size: #8 AWG to #2 AWG
  • Voltage Rating Description: 120/240 VAC

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358501261
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws Orange
GTiN 00783585012612
Length 14.900 in
Width 8.800 in
Size Standard Sized Product
Color Orange
Voltage 120/240 Volt
Type Unfused, Mechanically Interlocked, Single, Reversed
Material Thermoplastic
Conductor Size 8-2 AWG
Product Series Unfused Circuit,Lock
Applications High Ampacity Watertight Connections
Mounting Type Screw
Height 7.400 in
Wire Size 8-2 AWG
Wattage 15000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 60 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4
Sub Brand IEC 309 Pin and Sleeve Devices
Standard UL
