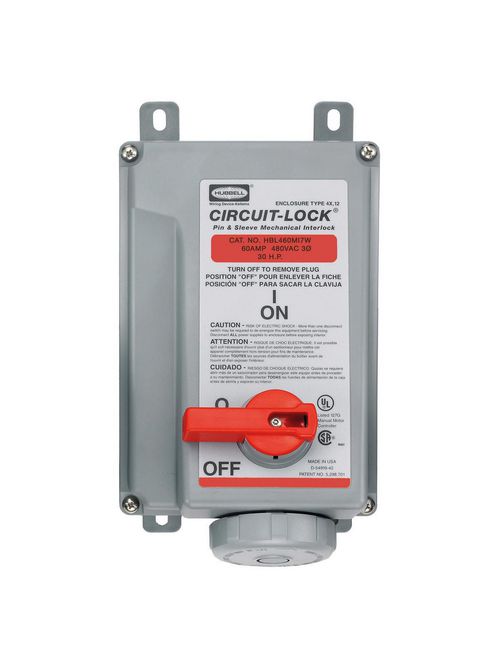

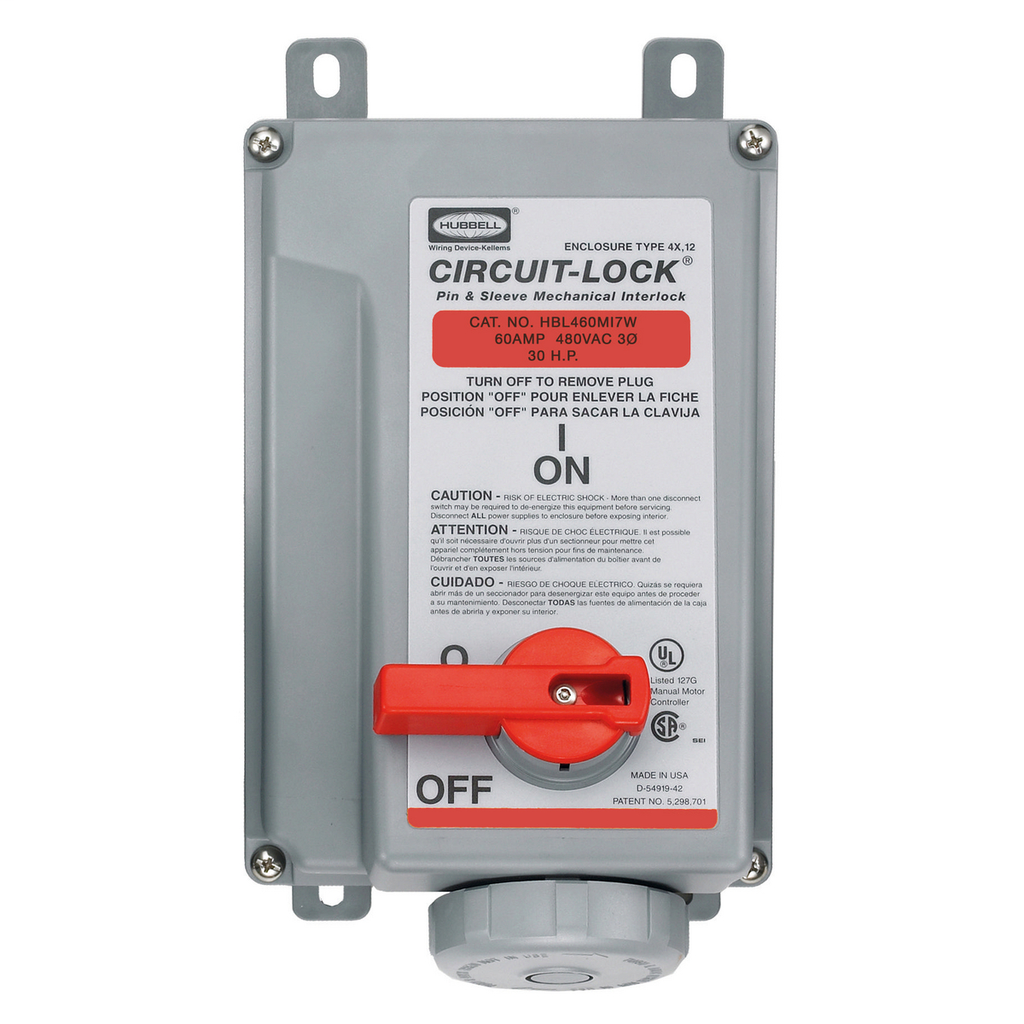

HCI HBL460MI7WR PS, IEC, MECHINT, 3
$1,969.21/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL460MI7WR
North Coast Part # 158163

Features

  • Captured neoprene gasket for a watertight seal
  • DIN rail mounted switch for easy installation and replacement
  • Solid pins for longer life and reliable electrical contact

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • Item Type: Mechanically Interlocked Single, Reversed
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage | Electrical - Dielectric Voltage - Withstands 3,000V AC Min | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 Classification | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) | Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). | Environmental - Operating Temperature - Max. Continuous +75°C | Min. Continuous -40°C | Mechanical - Impact Resistance - In accordance with UL 746C | Mechanical - Mounting - External adjustable feet | Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Series: Unfused Circuit-Lock
  • Style: Reverse Service
  • Type: Mechanical Interlock
  • UPC: 783585012636

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 60 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase 480 VAC
  • Voltage Rating Description: 3 Phase 480 VAC
  • Wattage: 28800

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #8 AWG to #2 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA

Overview

UPC 78358501263
GTiN 00783585012636
Length 14.900 in
Width 8.800 in
Size Standard Sized
Color Red
Voltage 480 Volt
Type Unfused, Mechanically Interlocked, Single, Reversed
Material Thermoplastic
Conductor Size 8-2 AWG
Product Series Lock,Unfused Circuit
Applications High Ampacity Watertight Connections
Mounting Type Screw
Height 7.400 in
Wire Size 8-2 AWG
Wattage 28800 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 60 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Pin and Sleeve Devices
Standard UL
