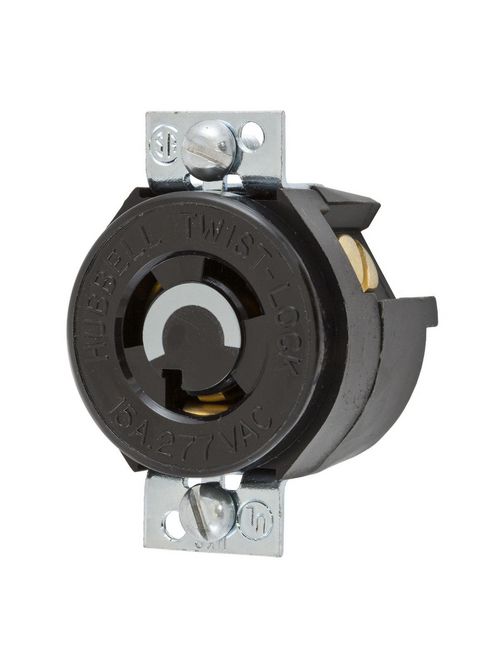

Hubbell Wiring Devices HBL4763 15 Amp 277 Volt 2-Pole 3-Wire NEMA L7-15R Black Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$44.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4763
North Coast Part # 66375

Features

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • All terminals are back and side wired
  • Brass mounting strap with stainless steel grounding clip
  • Panel Mount

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 1.75 in x 1.42 in x 1.27 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.27 in
  • Horsepower - Maximum: 2
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
  • Length: 1.75 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Amperage Rating: 15 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L7-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 1.75 in x 1.42 in x 1.27 in
  • Special Features: Panel Mount
  • Standard: Certified to CSA C22.2 No.42; Fed. Spec. W-C-596; Listed to UL 498
  • Type: Receptacle
  • Voltage Rating: 277 VAC
  • Wattage: 4155 W
  • Wire Size: #18 AWG to #10 AWG
  • Voltage Rating Description: 277 VAC
  • Width: 1.42 in

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585236919
Length 1.75 Inch
Width 1.42 in
Size 1.75 in x 1.42 in x 1.27 in
Color Black
Voltage 277 Volt
Type Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Applications Heavy Duty Industrial
Mounting Type Screw, Panel
Height 1.27 Inch
Grade Industrial
Weight 0.10 lb
Wire Size 18-10 AWG
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminal
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Product UPC 78358523691
Standard CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Country of Origin USA
