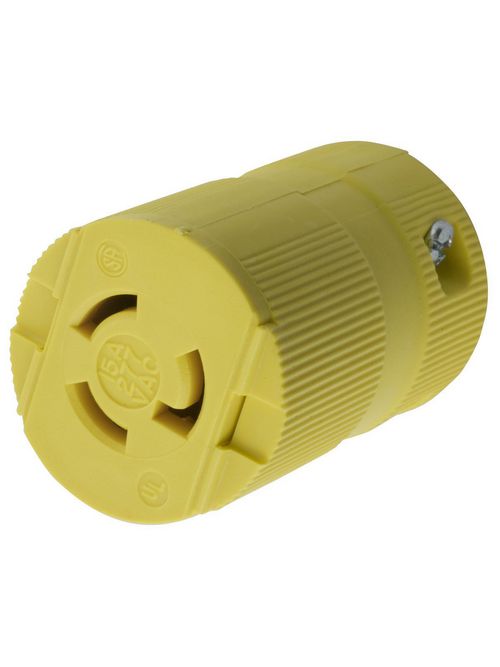

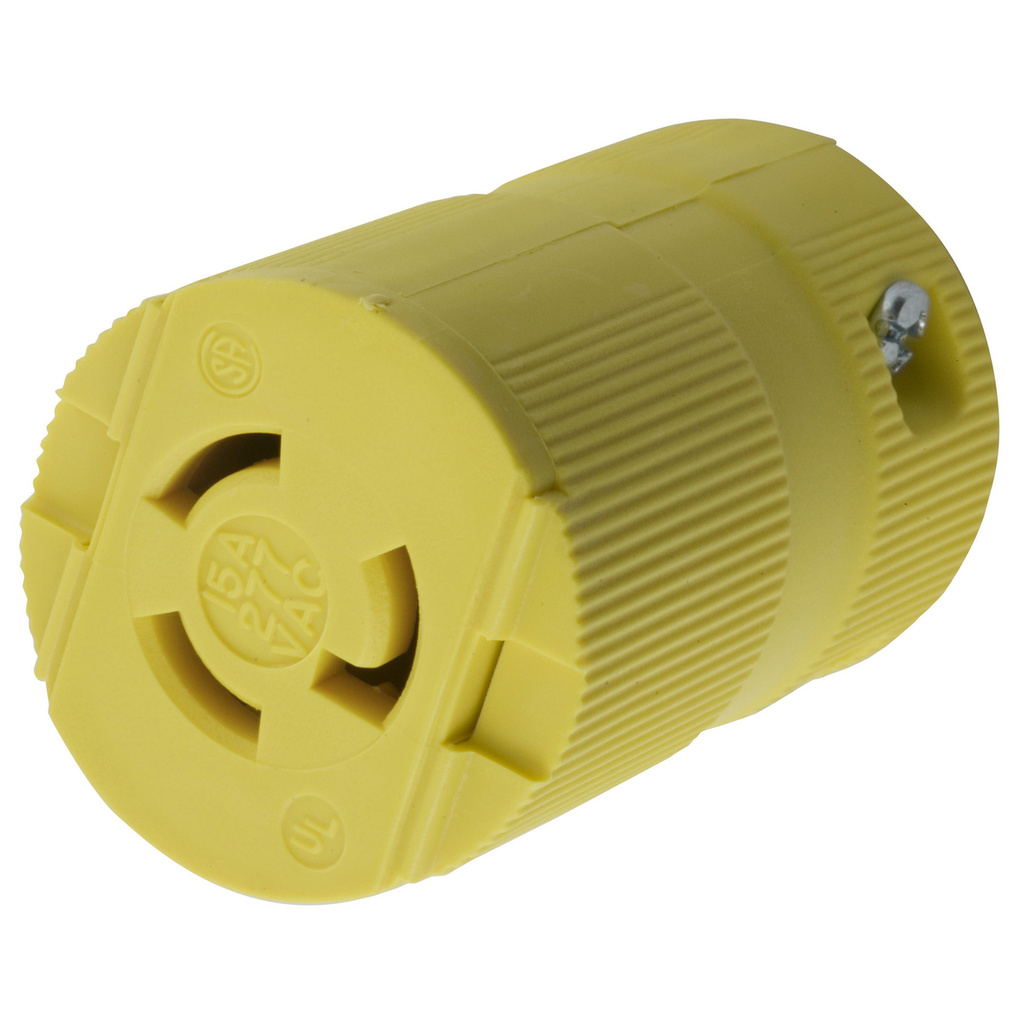

Hubbell Wiring Devices HBL4779VY 15 Amp 277 VAC NEMA L7-15R Yellow Nylon Locking Connector
Product image thumbnail 0
Product image thumbnail 1
$23.19/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4779VY
North Coast Part # 602710

Features

  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Yellow
  • Cord Range: 0.220"-0.660"(5.6-16.8)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 15A Valise® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG- #10 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Connector Body
  • UPC: 783585236964

Dimensions

  • Dimensions: 1.50 in x 1.50 in x 2.78 in
  • Display Size: Standard
  • Height: 2.78 in
  • Length: 1.50 in
  • Weight: 0.15 lb
  • Width: 1.50 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 277 VAC
  • Voltage Rating Description: 277 VAC

Conductor Related

  • Cable Range: 0.220 - 0.660 in
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L7-15R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358523696
GTiN 00783585236964
Length 1.50 in
Width 1.50 in
Size 1.50 in x 1.50 in x 2.78 in
Color Yellow
Voltage 277 Volt
Type Connector Body
Material Nylon
Number of Conductors 3-Wire Grounding
Applications Heavy Duty Industrial
Height 2.78 in
Weight 0.15 lb
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminal
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
