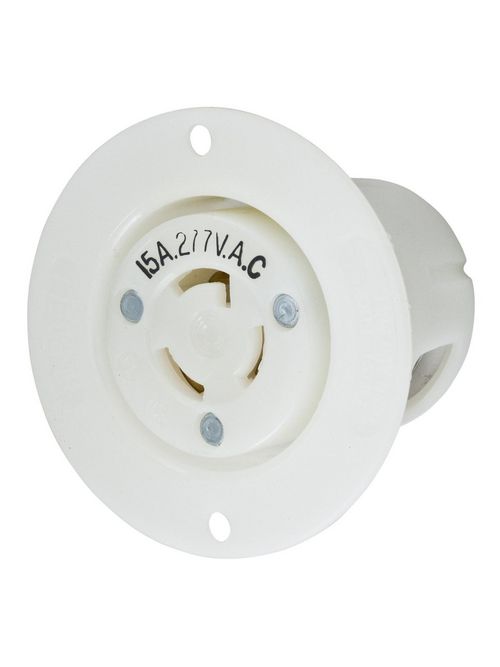

Hubbell Wiring Devices HBL4785C 15 Amp 277 VAC NEMA L7-15R White Nylon Locking Flanged Receptacle
Product image thumbnail 0
Product image thumbnail 1
$44.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4785C
North Coast Part # 68890

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Insulgrip
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 15A Grounding Insulgrip® Flanged Receptacle
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Receptacle
  • UPC: 783585172101

Dimensions

  • Dimensions: 2.56 in x 2.56 in x 1.71 in
  • Display Size: Standard Sized Product
  • Height: 1.71 in
  • Length: 2.56 in
  • Weight: 0.15 lb
  • Width: 2.56 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 277 VAC
  • Voltage Rating Description: 277 VAC
  • Wattage: 4155 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed. Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L7-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358517210
GTiN 00783585172101
Length 2.56 in
Width 2.56 in
Size 2.56 in x 2.56 in x 1.71 in
Color White
Voltage 277 Volt
Type Receptacle
Material Nylon
Applications Insulgrip
Height 1.71 in
Weight 0.15 lb
Wire Size 18-10 AWG
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
