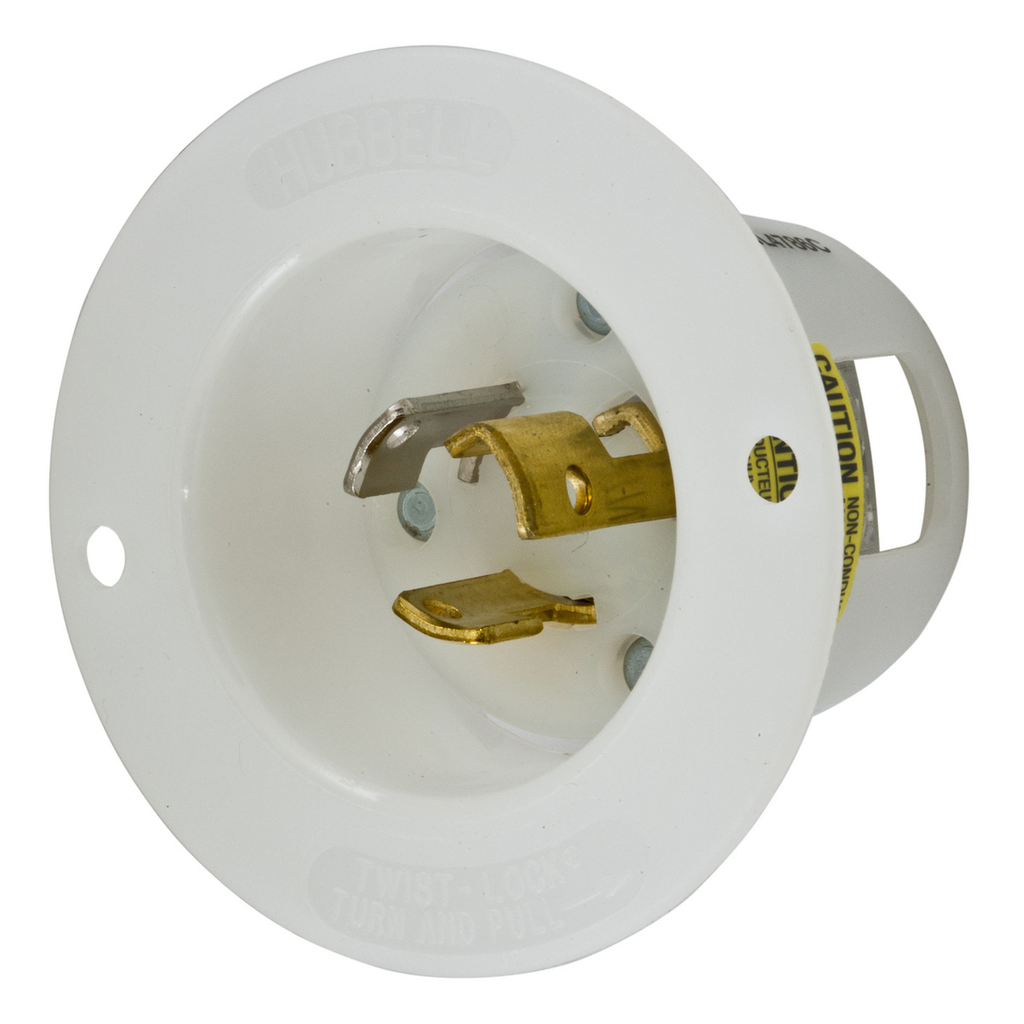

HCI HBL4786C LKG FLG-INLT, 15A 277
$32.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL4786C
North Coast Part # 69000

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 2
  • Insulation: Insulated Body
  • Item Type: 15A Grounding Insulgrip® Flanged Inlet
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Flanged Inlet
  • UPC: 783585172156

Dimensions

  • Dimensions: 2.56 in x 2.56 in x 1.71 in
  • Display Size: Standard Sized Product
  • Height: 1.71 in
  • Length: 2.56 in
  • Weight: 0.15 lb
  • Width: 2.56 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 277 VAC
  • Voltage Rating Description: 277 VAC
  • Wattage: 4155 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec.W-C-596 | Listed to UL 498
  • Nema Rating: L7-15P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358517215
GTiN 00783585172156
Length 2.56 in
Width 2.56 in
Size 2.56 in x 2.56 in x 1.71 in
Color White
Voltage 277 Volt
Type Locking, Industrial Grade
Material Thermoplastic
Applications Extra Heavy Duty Industrial
Height 1.71 in
Weight 0.15 lb
Wire Size 18-10 AWG
Wattage 4,155 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 14 AWG
Mounting Type Screw
Standard CSA C22.2 No.42,Fed.Spec.W-C-596,UL 498
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
