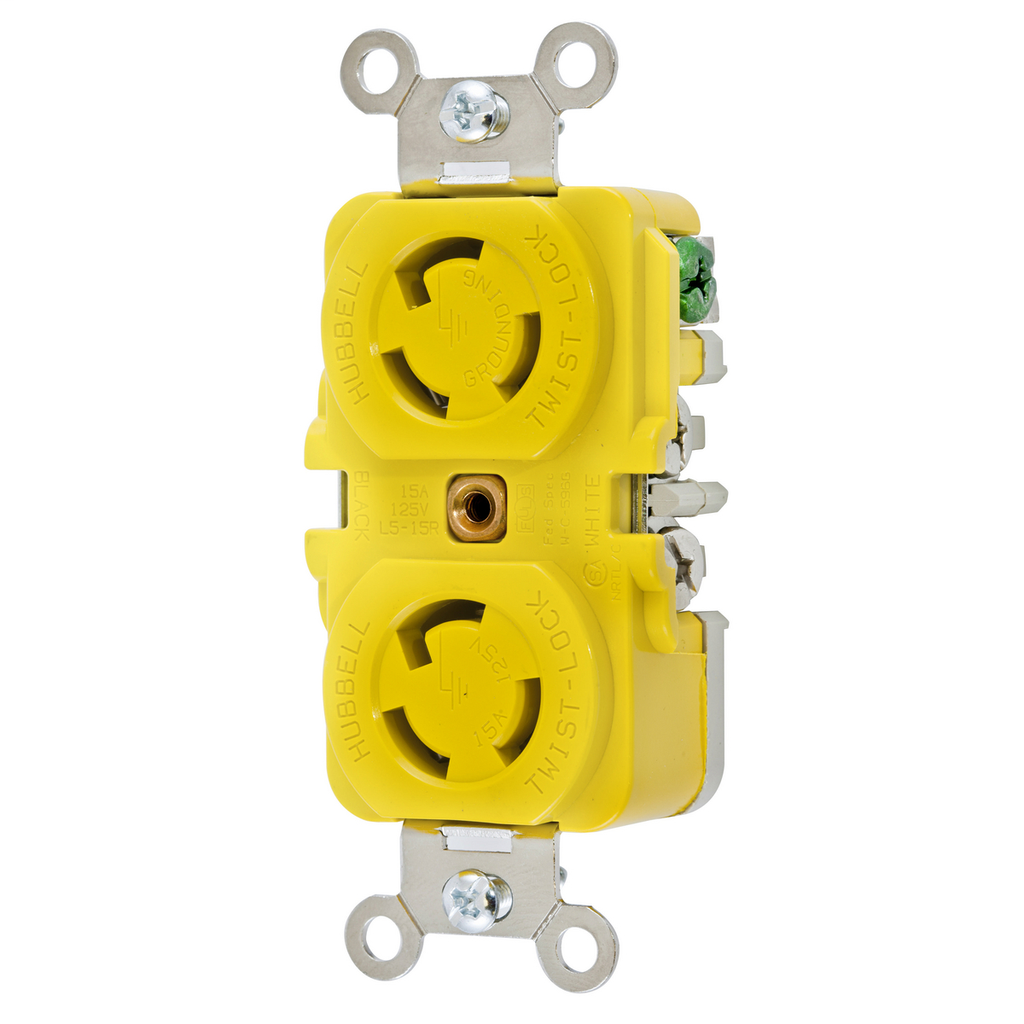

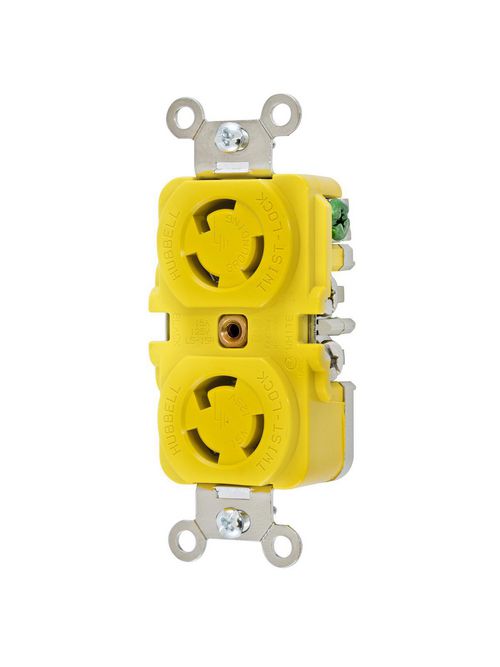

HWDK HBL47CM00 LKG DUP RCPT, CM, 15

Features

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• Single point break-off tabs
• Mounting strap tabs lock the body and base together

Specifications

General

• Application: Marine Wiring Devices
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 0.5
• Item Type: 15A Corrosion Resistant Duplex Receptacle
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Receptacle
• UPC: 783585393971

Dimensions

• Dimensions: 3.29 in x 1.70 in x 1.17 in
• Display Size: Standard Sized Product
• Height: 1.17 in
• Length: 3.29 in
• Weight: 0.25 lb
• Width: 1.70 in

Electrical Ratings

• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related

• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

• Industry Standard(s): Certified to CSA C22.2 No.42 | Fed. Spec. W-C-596 | Listed to UL 498
• Nema Rating: L5-15R

Logistics

• Carton Quantity: 10
