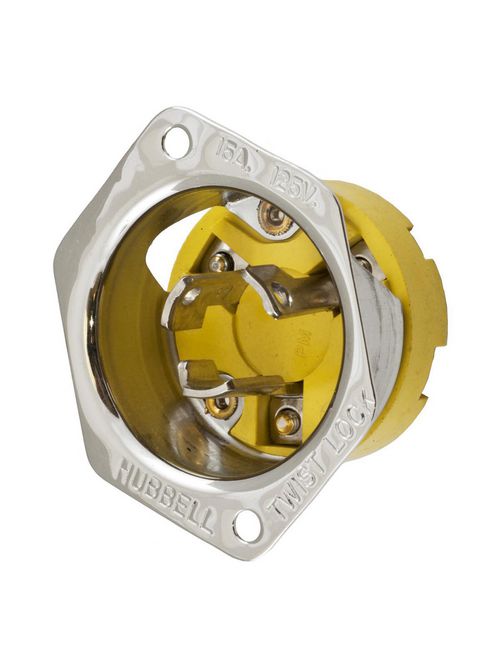

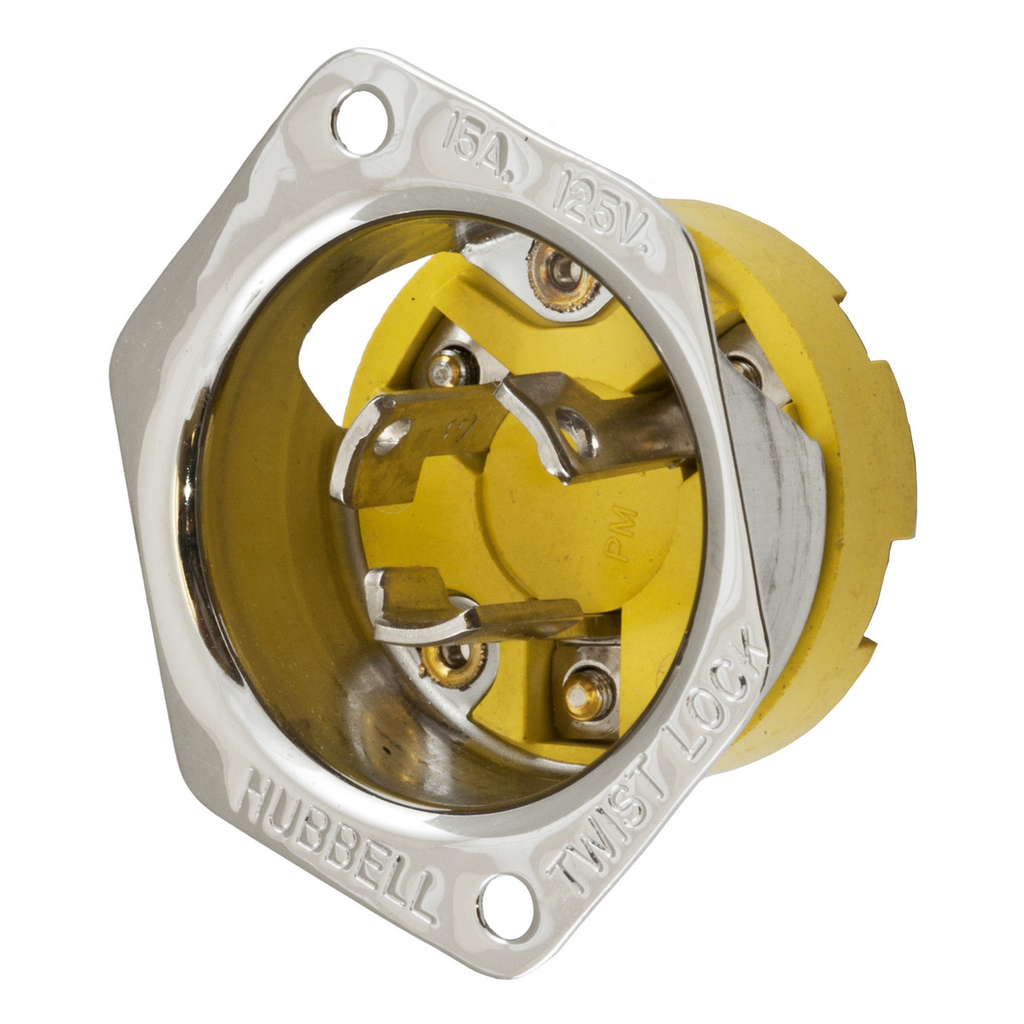

HWDK HBL47CM16 LKG FLG-INLT, CM, 15
$48.22/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL47CM16
North Coast Part # 209822

Features

  • Heat resistant thermoset construction
  • Stainless steel casing
  • #5-40 terminal screws
  • Mounting screws included

Specifications

General

  • Application: Marine Wiring Devices
  • Color: Yellow
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 15A Corrosion Resistant Flanged Inlet
  • Material: Stainless Steel
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Flanged Inlet
  • UPC: 783585237039

Dimensions

  • Display Size: Standard Sized Product
  • Weight: 0.10 lb

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Listed to UL 498 | Fed.Spec. W-C-596 | Certified to CSA C22.2 No.42
  • Nema Rating: L5-15P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523703
GTiN 00783585237039
Length 2.420 in
Width 2.420 in
Size Standard Sized
Color Yellow
Voltage 125 Volt
Type Flanged, Straight, Marine Grade
Material Thermoplastic
Applications Marine Wiring Devices
Height 1.540 in
Weight 0.10 lb
Wire Size 14 AWG
Wattage 1,875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 14 AWG
Mounting Type Screw, Wall
Standard Fed.Spec. W-C-596,CSA C22.2 No.42,UL 498
Environmental Conditions Corrosion-Resistant
