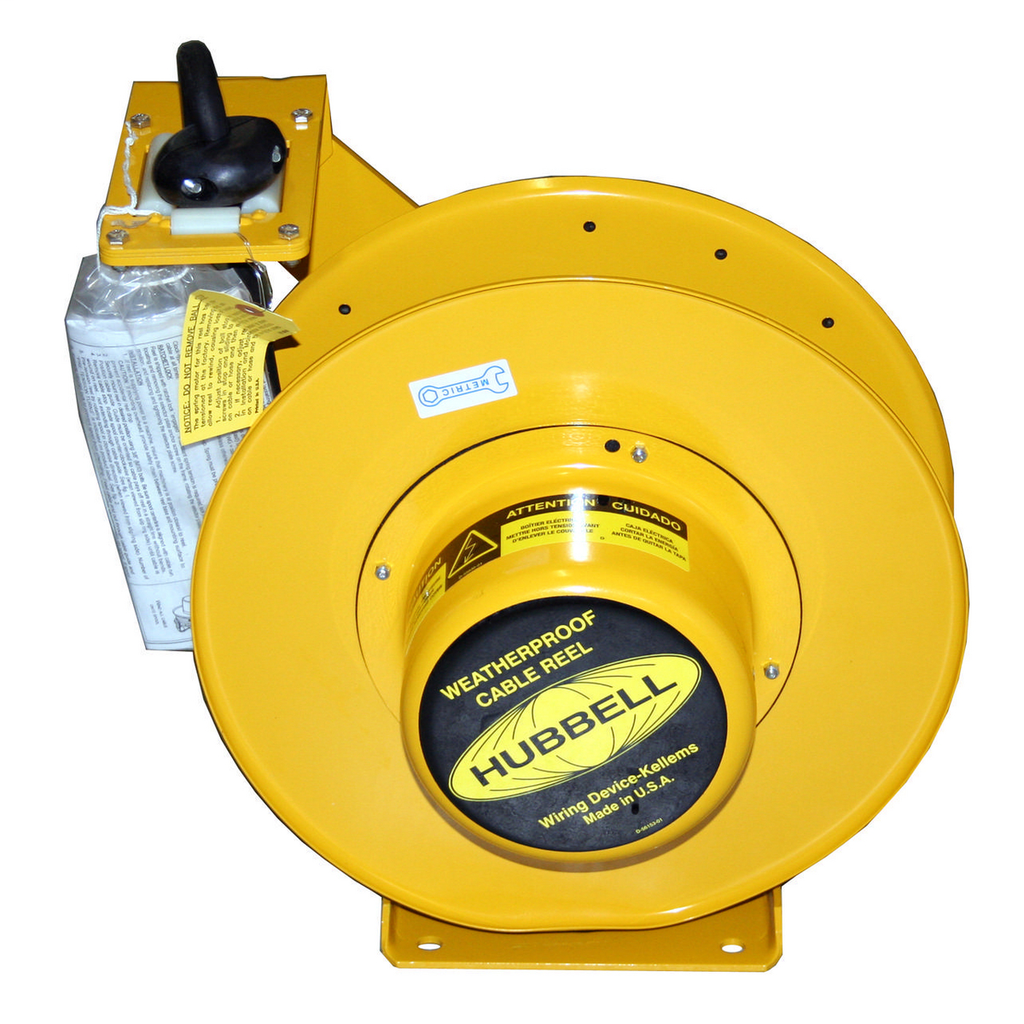

HCI HBL501032W W/PROOF ELEC REEL, 5
$1,888.62/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL501032W
North Coast Part # 154660

Features

  • Ratchet lock can be disengaged in field
  • Optional pivot base allows 340° rotation of reel
  • Multi-position roller guide can be mounted in four different positions
  • Ratchet Lock and be Enabled/Disabled

Performance

  • Environment - Operation - Dry, indoor and wet and damp outdoor non-hazardous location
  • Environment - Enclosure Type - Type 4X enclosure, CAN/CSA - C22.2 No. 21

Industry Standard(s)

  • UL 355 and CSA, C22.2 No. 21

Specifications

  • Amperage Rating: 25 A
  • Application: Bench, Ceiling and Wall Mounted
  • Base Type: Optional
  • Cable Length: 50 Ft
  • Cable Length Active: 600
  • Cable Length Inactive: 60
  • Cable Specification: 10/3 SOW-A
  • Cable Type: #10/3 SOW-A
  • Construction: Steel
  • Current / Amperage Rating: 25 A
  • Duty: Heavy Duty
  • Feeder Cord: 10/3 SOW-A
  • Item Type: Reel with Stripped Leads
  • Minimum Order Quantity: 1 EA
  • Nema Color: White
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Reel Frame Dimension: Steel
  • SAP Material Group 5: A10
  • Series: Industrial
  • Type: 16" Weatherproof
  • Voltage Rating: 600 VAC
  • Voltage Rating Description: 600 VAC
  • EU RoHS Indicator: No
  • Each - Height: 22.200 in
  • Each - Width: 22.000 in
  • Base: Optional
  • Cable Active Length: 50 Ft
  • Cable Inactive Length: 60
  • Reel Frame: Steel
  • Special Features: Ratchet Lock and be Enabled/Disabled
  • Standard: UL 355 and CSA, C22.2 No. 21

Overview

UPC 78358520925
GTiN 00783585209258
Width 22.000 in
Color White
Voltage 600 Volt
Type Heavy Duty
Material Sheet Metal, Steel
Number of Conductors 3
Conductor Size 10 AWG
Product Series Industrial
Applications Bench, Ceiling and Wall Mounted
Mounting Type Bench, Ceiling and Wall
Cable Type 10/3 SOW-A
Height 22.200 in
Base Optional
Family Brand Name Hubbell Wiring Device Kellems
Conductor Type SOW-A
Construction Steel
Cord Length 50 ft
Current 25 A
Sub Brand Weatherproof Reels
