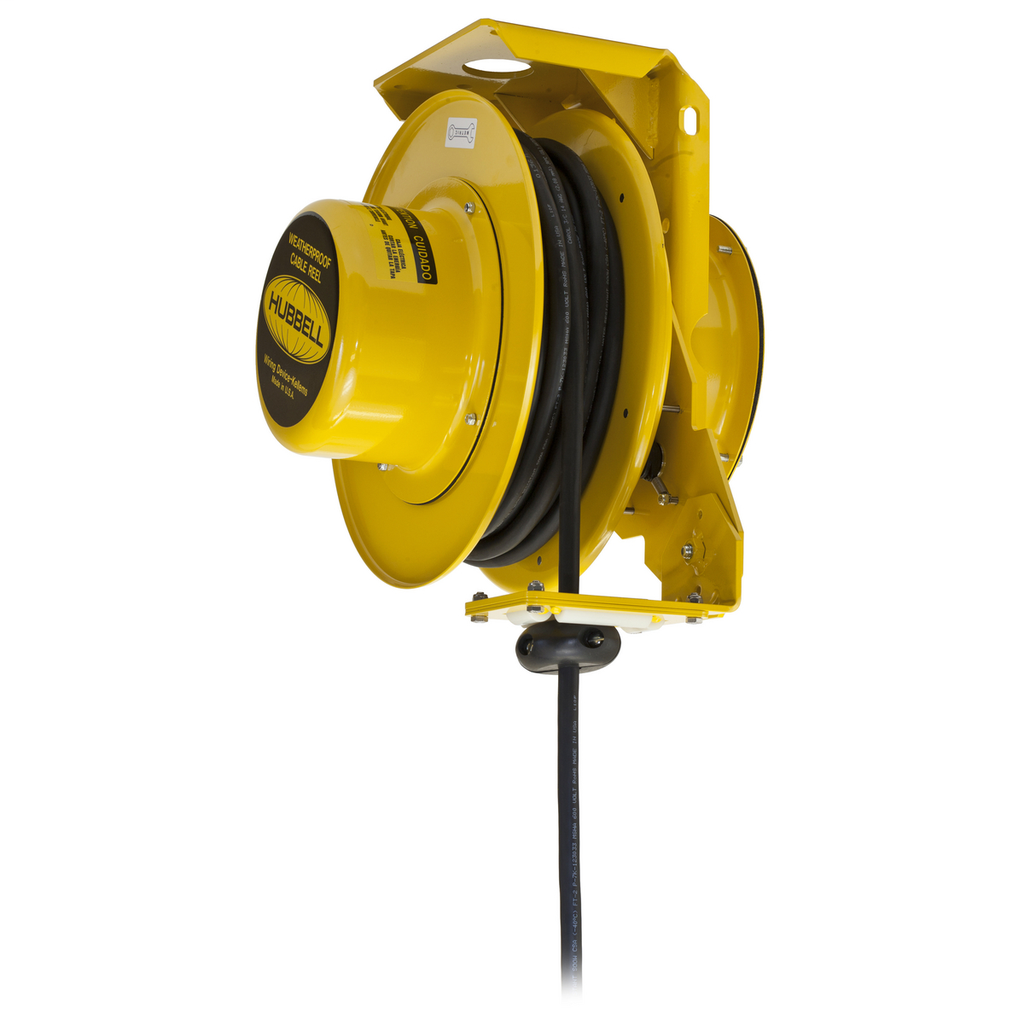

HCI HBL501042W W/PROOF ELEC REEL, 5
Product image thumbnail 0
Product image thumbnail 1
$2,049.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL501042W
North Coast Part # 155408

Features

  • Ratchet lock can be disengaged in field
  • Optional pivot base allows 340° rotation of reel
  • Multi-position roller guide can be mounted in four different positions
  • Ratchet Lock and be Enabled/Disabled

Performance

  • Environment - Enclosure Type - Type 4X enclosure, CAN/CSA - C22.2 No. 21
  • Environment - Operation - Dry, indoor and wet and damp outdoor non-hazardous location

Industry Standard(s)

  • UL 355 and CSA, C22.2 No. 21

Specifications

  • Amperage Rating: 20 A
  • Application: Bench, Ceiling and Wall Mounted
  • Base Type: Optional
  • Cable Length: 50 Ft
  • Cable Length Active: 600
  • Cable Length Inactive: 60
  • Cable Specification: 10/4 SOW-A
  • Cable Type: #10/4 SOW-A
  • Construction: Steel
  • Current / Amperage Rating: 20 A
  • Duty: Heavy Duty
  • Feeder Cord: 10/4 SOW-A
  • Item Type: Reel with Stripped Leads
  • Minimum Order Quantity: 1 EA
  • Nema Color: Yellow and Black
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Reel Frame Dimension: Steel
  • SAP Material Group 5: A10
  • Series: Industrial
  • Type: 16" Weatherproof
  • Voltage Rating: 600 VAC
  • Voltage Rating Description: 600 VAC
  • EU RoHS Indicator: No
  • Each - Length: 21.400 in
  • Each - Height: 21.900 in
  • Each - Width: 20.200 in
  • Base: Optional
  • Cable Active Length: 50 Ft
  • Cable Inactive Length: 60
  • Reel Frame: Steel
  • Special Features: Ratchet Lock and be Enabled/Disabled
  • Standard: UL 355 and CSA, C22.2 No. 21

Overview

UPC 78358520930
GTiN 00783585209302
Length 21.400 in
Width 20.200 in
Voltage 600 Volt
Type Heavy Duty
Product Series Industrial
Applications Bench, Ceiling and Wall Mounted
Cable Type #10/4 SOW-A
Height 21.900 in
Base Optional
Family Brand Name Hubbell Wiring Device Kellems
Construction Steel
Current 20 A
Sub Brand Weatherproof Reels
Color Yellow/Black
Material Steel Frame
Mounting Type Bench/Ceiling/Wall
Conductor Type 10/4 SOW-A
Cord Length 50 ft (Active), 5 ft (Inactive)
Cable Length 50 Ft
