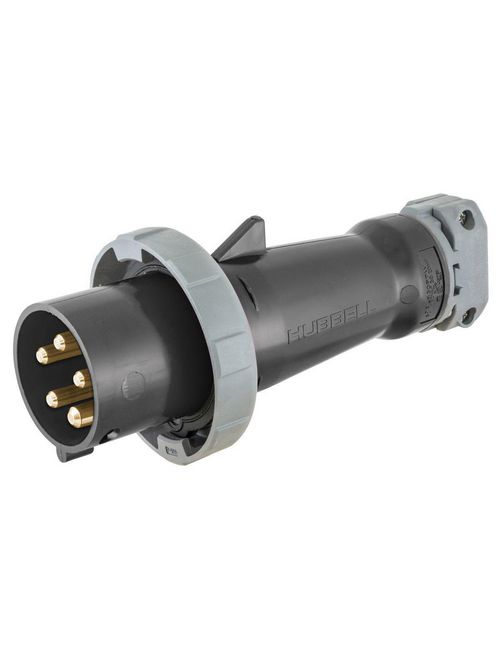

HWDK HBL5100P5W PS, PLG, 4P5W, 100A
$769.92/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5100P5W
North Coast Part # 213125

Features

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips for maximum cord retention

Specifications

General

  • Application: High Ampacity Connections
  • Color: Black
  • Environmental Conditions: Watertight
  • Item Type: Male Plug
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Plug
  • UPC: 783585405070

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase Y 347/600 VAC
  • Voltage Rating Description: 3 Phase Y 347/600 VAC

Conductor Related

  • Cord Type: All Portable
  • Number Of Wires: 5-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified File LR280C | UL Classified to IEC Standards 60309-1 | UL Listed, File E146033
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 6

Overview

UPC 78358540507
GTiN 00783585405070
Length 14.000 in
Width 6.250 in
Size Standard Sized
Color Black
Voltage 600 Volt
Type Male, Straight
Material Composite
Conductor Size 3 to 1/0 AWG
Product Series HBL Heavy Duty
Cord Type All Portable
Applications High Ampacity Connections
Mounting Type Cord
Height 5.250 in
Wire Size 3-0 AWG
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 6
Grounding Grounding
TC Connection Pressure Terminal Screws
Current 100 A
Environmental Conditions Watertight
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Standard CSA,File E146033,IEC Standards 60309-1,UL,File LR280C
