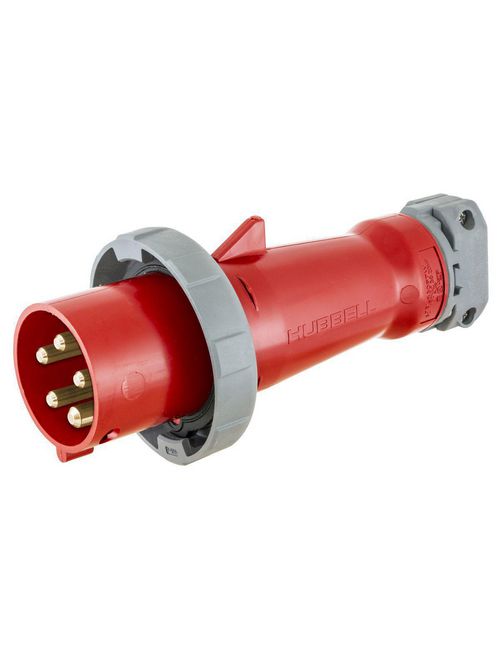

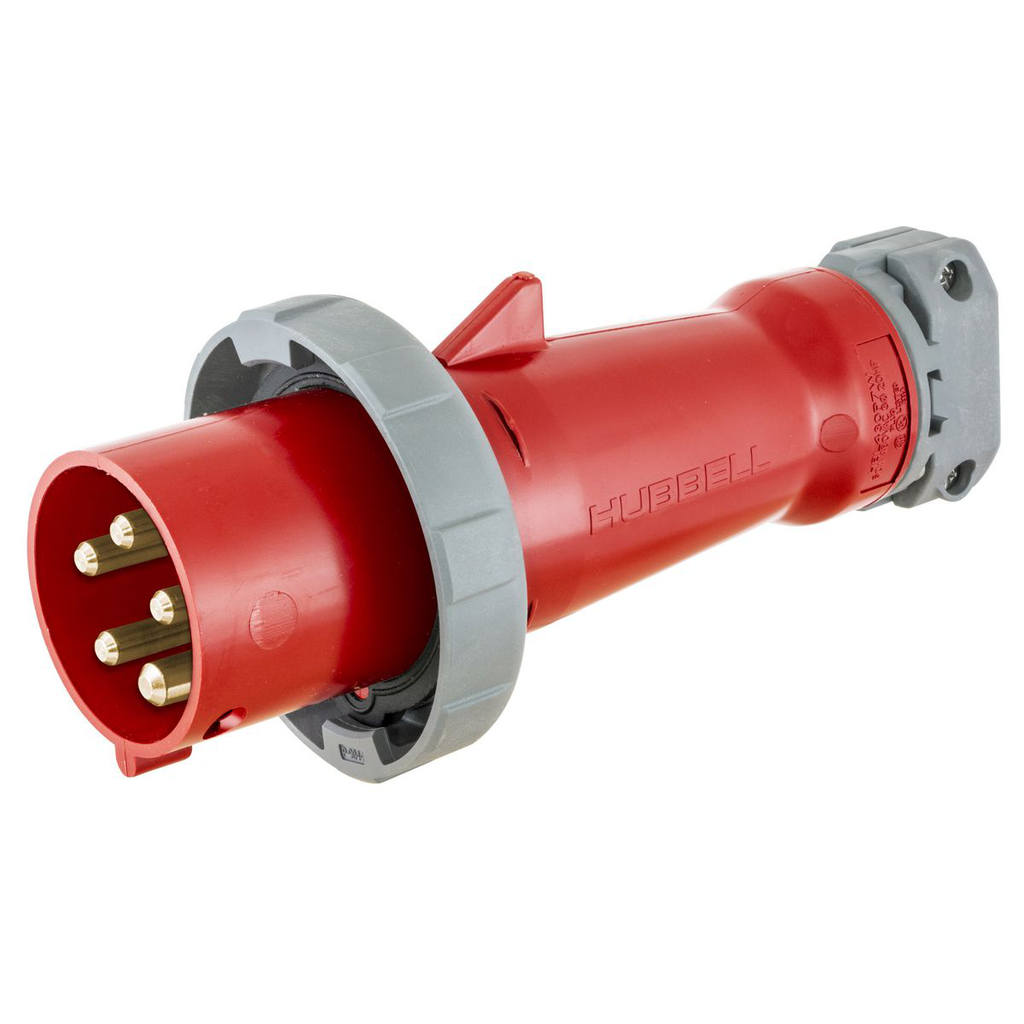

Hubbell Wiring Devices HBL5100P7W 100 Amp 277/480 Volt 4-Pole 5-Wire Red IEC Pin and Sleeve Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$781.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5100P7W
North Coast Part # 213354

Features

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips for maximum cord retention
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 100 A
  • Each - Height: 5.250 in
  • Each - Length: 14.000 in
  • Each - Width: 6.250 in
  • Industry Standard(s): CSA Certified File LR280C;UL Classified to IEC Standards 60309-1;UL Listed, File E146033
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 100 A
  • Application: High Ampacity Connections
  • Color: Red
  • Cord Type: All Portable
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: Three Phase
  • Special Features: Watertight
  • Standard: CSA Certified File LR280C; UL Classified to IEC Standards 60309-1; UL Listed, File E146033
  • Type: Watertight Plug
  • Voltage Rating: 3 Phase Y 277/480 VAC
  • Wire Size: #3 AWG to #1/0 AWG
  • Voltage Rating Description: 3 Phase Y 277/480 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540508
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Wye 277/480V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
GTiN 00783585405087
Length 14.000 in
Width 6.250 in
Size Standard Sized Product
Color Red
Voltage 480 Volt
Type Male, Standard Sized
Material Composite
Product Series HBL Heavy Duty
Cord Type All Portable
Applications High Ampacity Connections
Height 5.250 in
Wire Size 3-0 AWG
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Terminal Screws
Current 100 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Conductor Size 3-1/0 AWG
Mounting Type Cord
Standard CSA,File E146033,File LR280C,IEC Standards 60309-1,UL
Environmental Conditions Watertight
