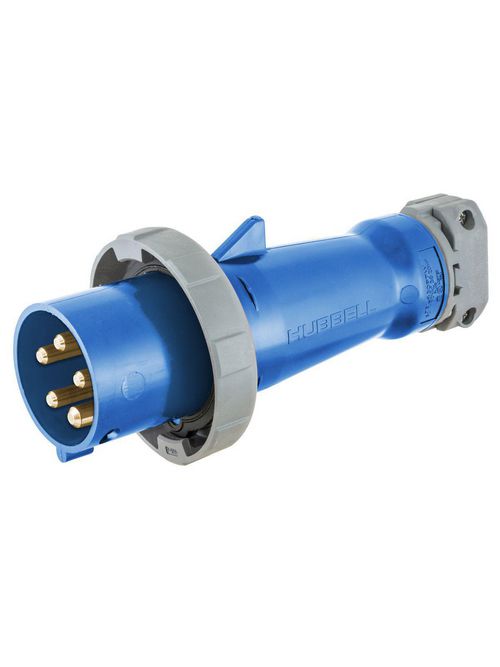

Hubbell Wiring Devices HBL5100P9W 100 Amp 120/208 Volt 4-Pole 5-Wire Blue Watertight IEC Pin and Sleeve Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$754.21/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5100P9W
North Coast Part # 213625

Features

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 100 A
  • Each - Height: 5.250 in
  • Each - Length: 14.000 in
  • Each - Width: 6.250 in
  • Industry Standard(s): CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperature - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 100 A
  • Application: High Ampacity Connections
  • Color: Blue
  • Cord Type: All Portable
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: Three Phase
  • Special Features: Watertight
  • Standard: CSA Standard C22.2 No. 182.1; UL Classified to IEC60309-1; UL Listed, File E146032
  • Type: Watertight Plug
  • Voltage Rating: 3 Phase Y 120/208 VAC
  • Wire Size: #3 AWG to #1/0 AWG
  • Voltage Rating Description: 3 Phase Y 120/208 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540509
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
GTiN 00783585405094
Length 14.000 in
Width 6.250 in
Size Standard Sized Product
Color Blue
Voltage 208 Volt
Type Male, Straight
Material Composite
Conductor Size 3 to 1/0 AWG
Product Series HBL Heavy Duty
Cord Type All Portable
Applications High Ampacity Connections
Mounting Type Cord
Height 5.250 in
Wire Size 3-0 AWG
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Pressure Terminal Screws
Current 100 A
Environmental Conditions Watertight
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Standard CSA Standard C22.2 No. 182.1,File E146032,IEC60309-1,UL
