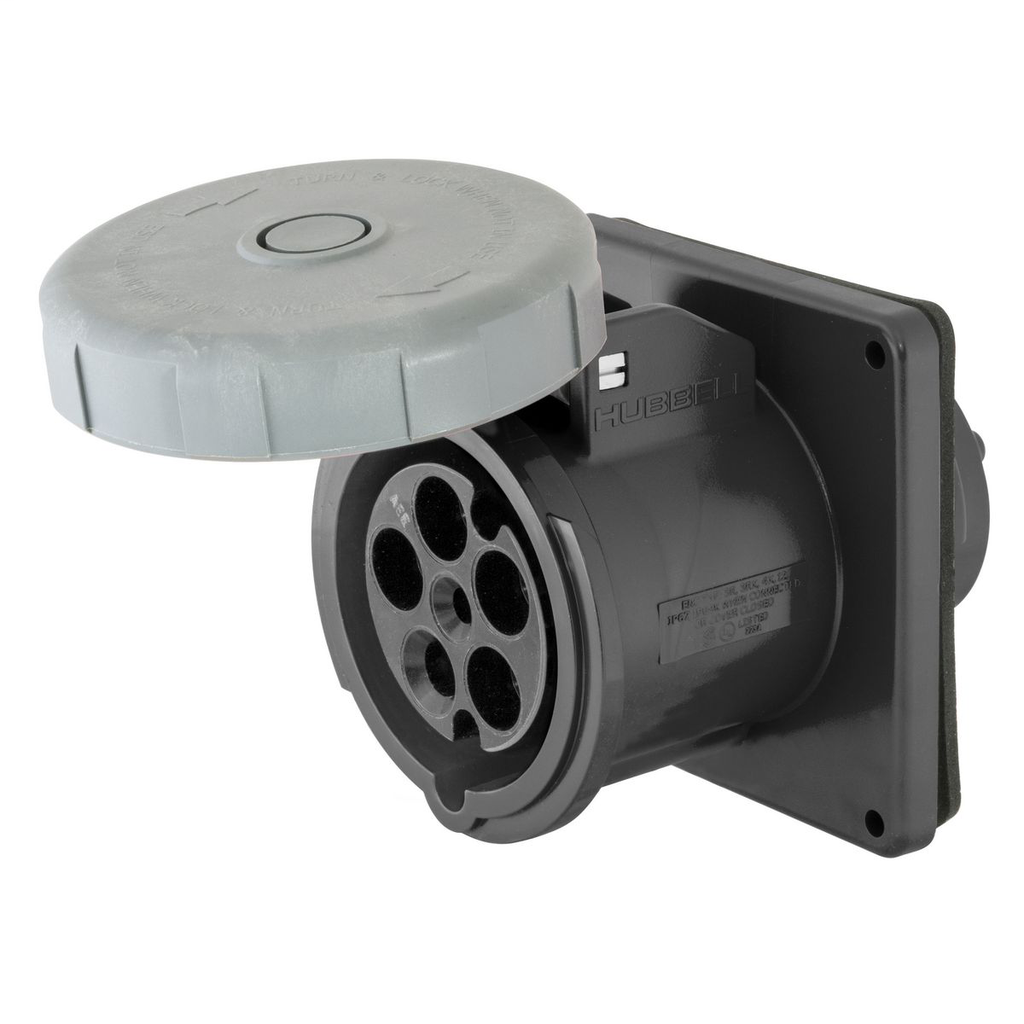

HWDK HBL5100R5W PS,IEC, RECP, 4P5W,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$700.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5100R5W
North Coast Part # 215121

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 100 A
  • Each - Height: 5.750 in
  • Each - Length: 7.000 in
  • Each - Width: 6.380 in
  • Industry Standard(s): Listed To Standard UL1682
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 100 A
  • Application: High Ampacity Watertight Connections
  • Color: Black
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: Three Phase
  • Special Features: Watertight
  • Standard: Listed To Standard UL1682
  • Type: Watertight Receptacle
  • Voltage Rating: 3 Phase Y 347/600 VAC
  • Wattage: 60000
  • Wire Size: #3 AWG to #1/0 AWG
  • Voltage Rating Description: 3 Phase Y 347/600 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540510
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Black, Watertight
GTiN 00783585405100
Length 7.000 in
Width 6.380 in
Size Standard Sized Product
Color Black
Voltage 600 Volt
Type Single Flanged
Material Thermoplastic/Composite
Conductor Size 3 to 1/0 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Watertight Connections
Mounting Type Screw, External, Surface
Height 5.750 in
Wire Size 3-0 AWG
Wattage 60000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Pressure Screw Terminals
Current 100 A
Environmental Conditions Watertight
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Standard Standard UL1682
