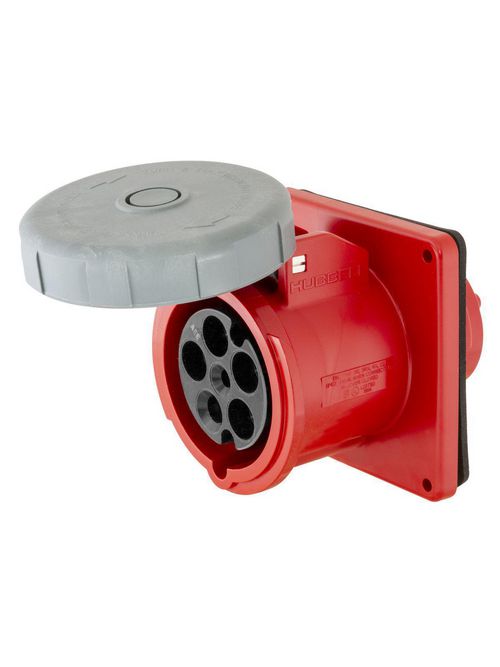

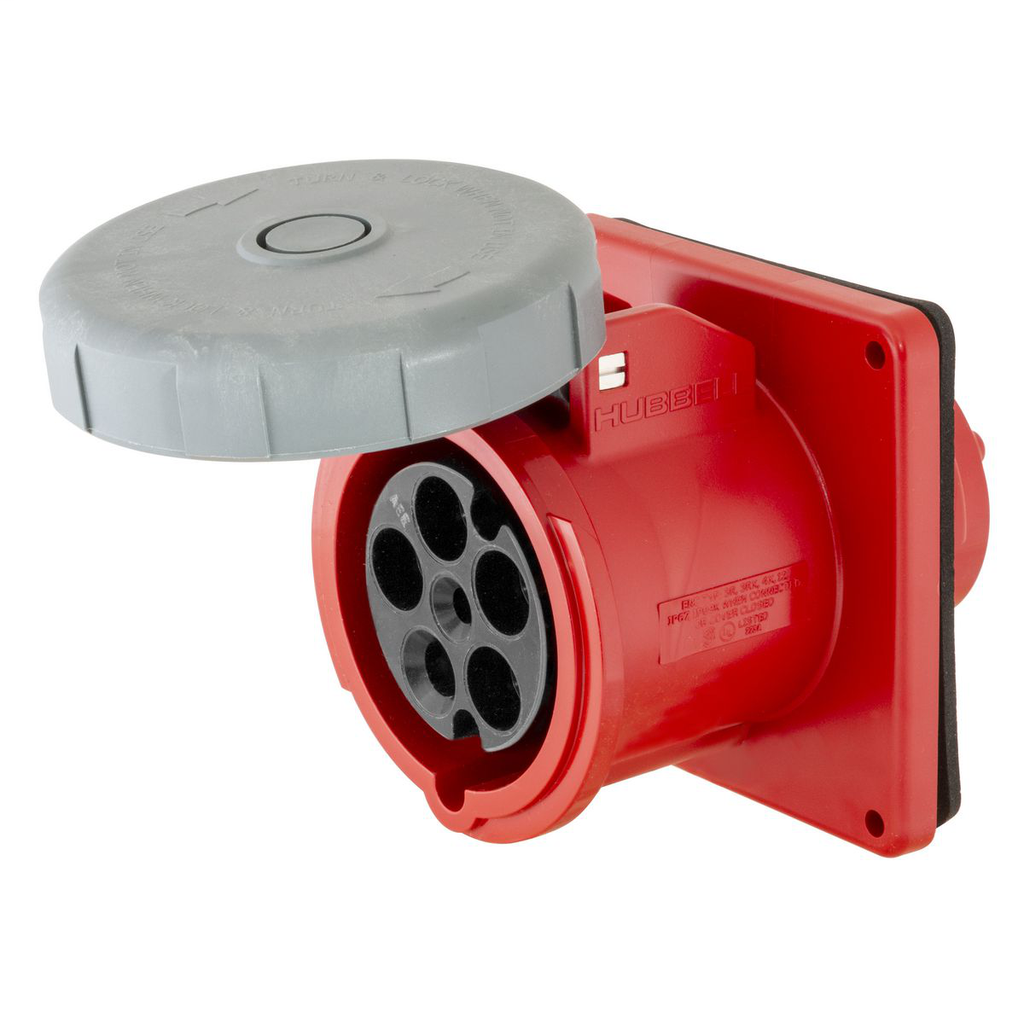

Hubbell Wiring Devices HBL5100R7W 100 Amp 277/480 Volt 4-Pole 5-Wire Red IEC Pin and Sleeve Receptacle
$635.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5100R7W
North Coast Part # 215337

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • Item Type: Single Flanged
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstand 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 | Mechanical - Product Identification - Ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Receptacle
  • UPC: 783585405117

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase Y 277/480 VAC
  • Voltage Rating Description: 3 Phase Y 277/480 VAC
  • Wattage: 48000

Conductor Related

  • Number Of Wires: 5-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

  • Industry Standard(s): Listed To Standard UL1682
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 6

Overview

UPC 78358540511
GTiN 00783585405117
Length 7.000 in
Width 6.380 in
Size Standard
Color Red
Voltage 480 Volt
Type Watertight
Material Thermoplastic
Product Series HBL Heavy Duty
Applications High Ampacity Connections
Height 5.750 in
Wire Size 3-0 AWG
Wattage 48000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 6
TC Connection Pressure Screw Terminals
Current 100 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Conductor Size 3-1/0 AWG
Mounting Type Screw
Standard Standard UL1682
