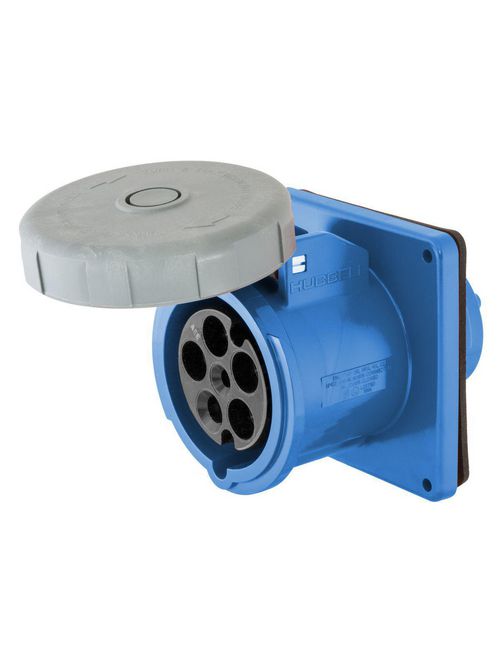

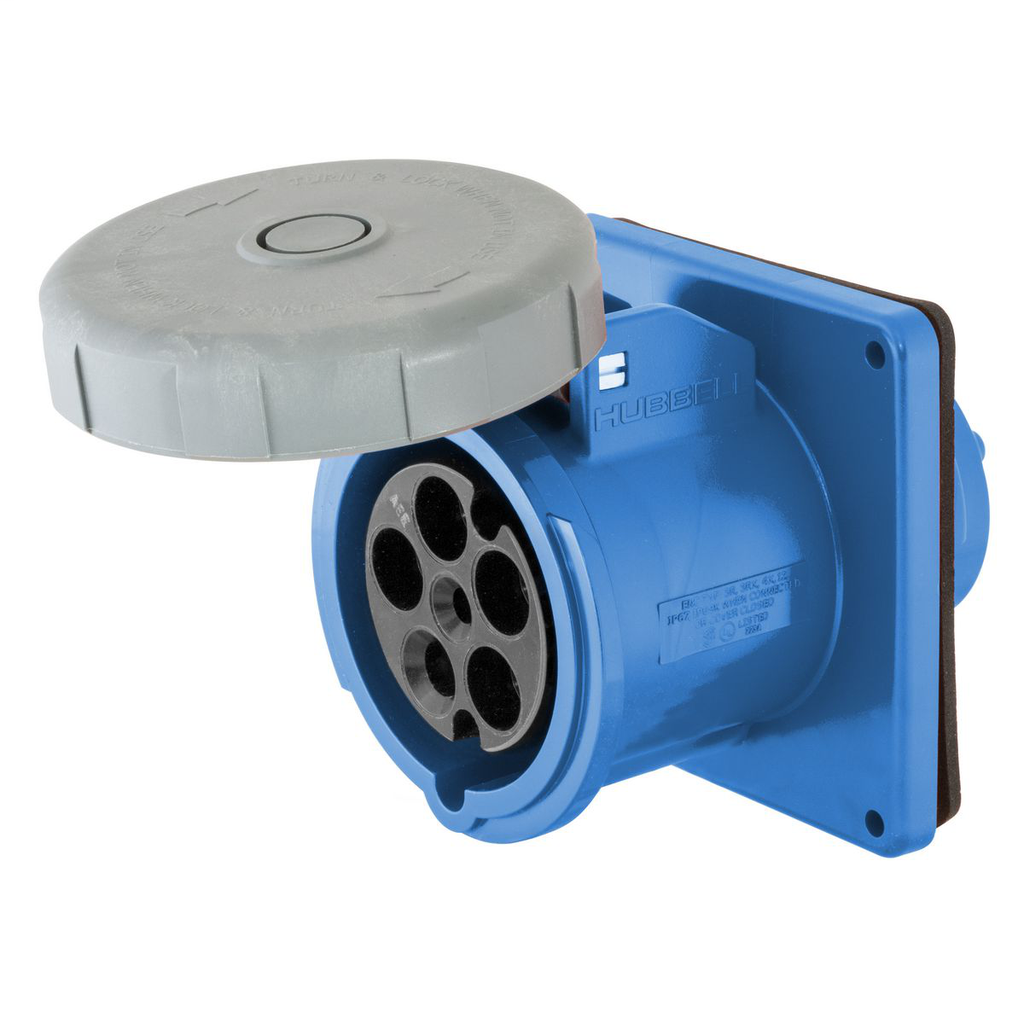

Hubbell Wiring Devices HBL5100R9W 100 Amp 120/208 Volt 4-Pole 5-Wire Blue Watertight IEC Pin and Sleeve Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$671.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5100R9W
North Coast Part # 215563

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 100 A
  • Each - Height: 5.750 in
  • Each - Length: 7.000 in
  • Each - Width: 6.380 in
  • Industry Standard(s): Listed To Standard UL1682
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 100 A
  • Application: High Ampacity Watertight Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: Three Phase
  • Special Features: Watertight
  • Standard: Listed To Standard UL1682
  • Type: Watertight Receptacle
  • Voltage Rating: 3 Phase Y 120/208 VAC
  • Wattage: 20800
  • Wire Size: #3 AWG to #1/0 AWG
  • Voltage Rating Description: 3 Phase Y 120/208 VAC

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358540512
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
GTiN 00783585405124
Length 7.000 in
Width 6.380 in
Size Standard
Color Blue
Voltage 208 Volt
Type Watertight
Material Plastic
Product Series HBL Heavy Duty
Applications High Ampacity Connections
Height 5.750 in
Wire Size 3-0 AWG
Wattage 20800 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 100 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve Devices
Conductor Size 3-1/0 AWG
Mounting Type Screw, Surface
Standard Standard UL1682
Environmental Conditions Watertight
