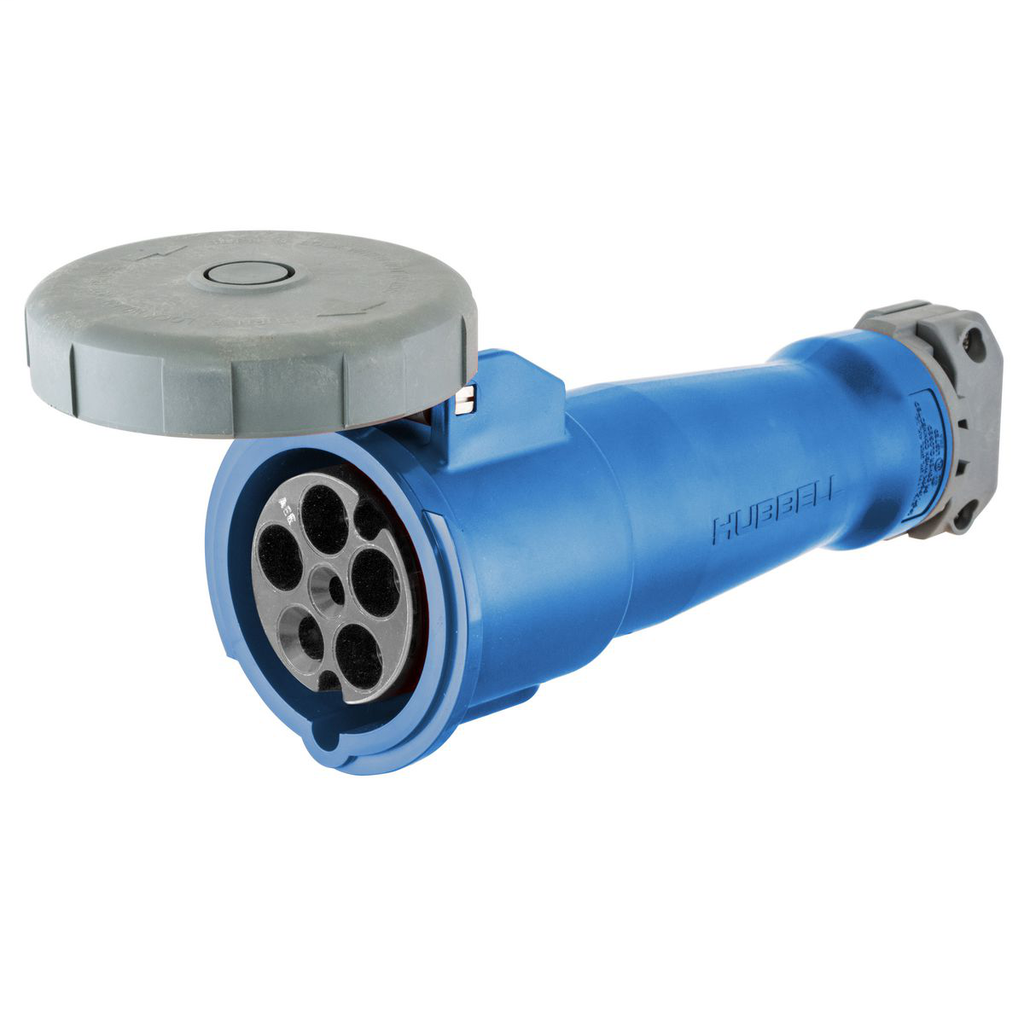

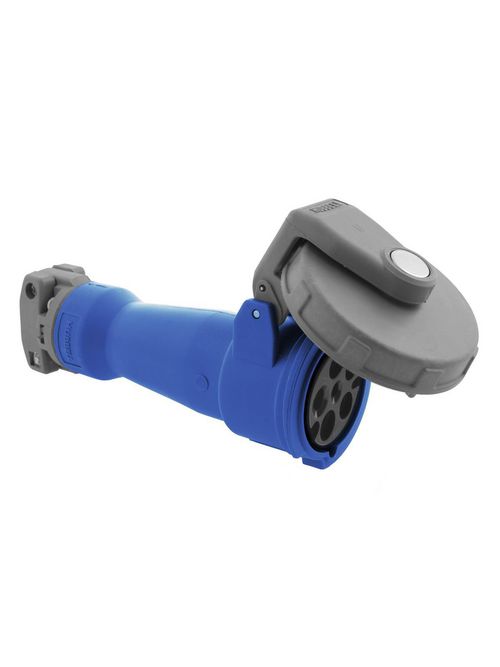

HWDK HBL520C9W PS,IEC, CONN,4P5W,16
$315.90/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL520C9W
North Coast Part # 213831

Features

  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Corrosion-resistant self-closing gasketed cover

Specifications

General

  • Application: High Ampacity Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Standard
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - 3000V AC | Electrical - Max. Working Voltage - 600V RMS | Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Watertight per IEC 60309-1 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum - 40°C w/o impact | Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 | Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector Body
  • UPC: 783585405315

Dimensions

  • Display Size: Standard

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Voltage Rating: 3 Phase Y 120/208 VAC
  • Voltage Rating Description: 3 Phase Y 120/208 VAC

Conductor Related

  • Conductor Range: #14 AWG to #10 AWG
  • Number Of Conductors: 5-Wire Grounding
  • Number Of Wires: 5-Wire

Certifications and Compliance

  • Industry Standard(s): CSA Certified File LR280C | UL Classified to IEC 60309-1 IEC 60309-2 | UL Listed, File E146033
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358540531
GTiN 00783585405315
Length 9.000 in
Width 4.300 in
Size Standard
Color Blue
Voltage 208 Volt
Type Straight
Material Plastic
Number of Conductors 5-Wire Grounding
Conductor Size 14-10 AWG
Product Series HBL Heavy Duty
Applications High Ampacity Connections
Mounting Type Cord
Height 4.250 in
Temperature Rating -40 to 75 C/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Grounding
TC Connection Pressure Screw Terminal
Current 20 A
Environmental Conditions Watertight
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve
Standard CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
