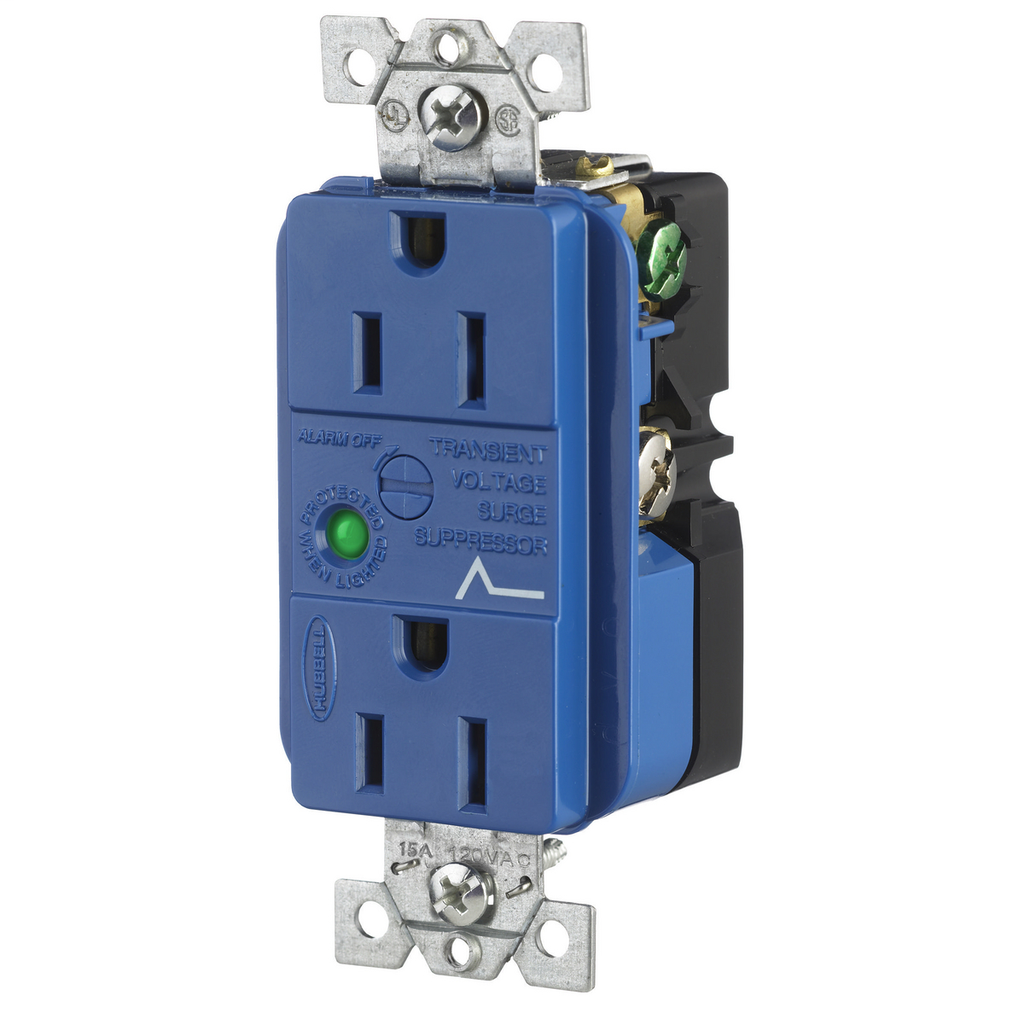

Hubbell Wiring Devices HBL5260SA 15 Amp 125 Volt NEMA 5-15R Blue Surge Protection Device Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$73.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5260SA
North Coast Part # 16732

Features

  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Power-on indicator light verifies that power is available
  • Alert alarm sounds when surge protection is no longer functioning

Specifications

General

  • Application: Decorator Duplex
  • Color: Blue
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Indicator(s) Type: None
  • Item Type: Surge Protection Receptacles
  • Material: Composite
  • Material - Mounting Hardware: Mounting Screws
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
  • Outlet: Straight Blade
  • Performance: Electrical - Protection Modes - Normal and Common Modes | Electrical - Response Time - Approximately 5 ns | Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs) | Electrical - Voltage - 120V AC + 10% - 15% | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
  • Response Time: 5
  • Series: Specification Grade
  • Type: Duplex
  • UPC: 783585060019

Dimensions

  • Display Size: Standard

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Terminal Screws
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Frequency Rating: 60 Hz
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Certifications and Compliance

  • Industry Standard(s): CSA Certified to Specification C22.2 No. 42 | Listed to UL Standards 498 | UL Listed File E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358506001
GTiN 00783585060019
Length 4.300 in
Finish Matte
Width 2.200 in
Size Standard
Color Blue
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Voltage 125 Volt
Type Straight Blade, Decorator
Material Composite
Product Series Specification Grade
Applications Decorator Duplex
Mounting Type Screw, Flush
Height 1.900 in
Temperature Rating 0 - 60 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 15 A
Response Time 5
Blade Dimensions 66.5 mm H x 44.5 mm W x 28.7 mm D
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Sub Brand SpikeShield
Standard C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
Class Normal and Common Mode
