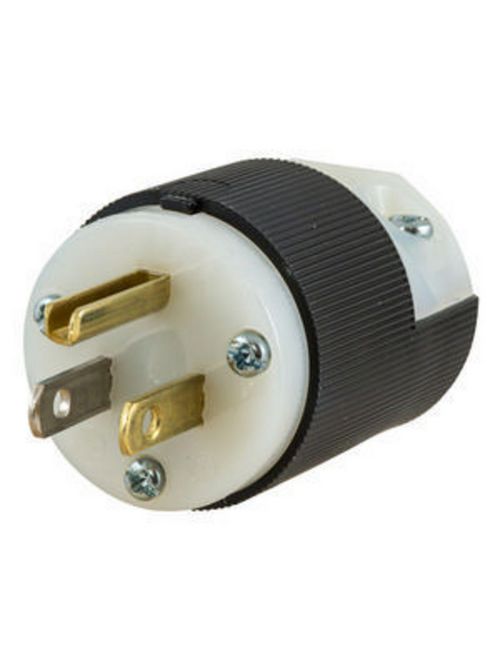

Hubbell Wiring Devices HBL5266C 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Black/White Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$20.35/ea
In Stock | 926 available at 22 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5266C
North Coast Part # 109708

Features

  • Ribbed nylon housing is impact and chemical resistant.
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging

Specifications

General

  • Color: Black, White
  • Material: Polycarbonate
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 HB or better | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Insulgrip
  • Style: Standard
  • Type: Plugs
  • UPC: 783585173009

Dimensions

  • Dimensions: 1.52 in x 1.52 in x 1.96 in
  • Height: 1.96 in
  • Length: 1.52 in
  • Weight: 0.15 lb
  • Width: 1.52 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280 | Fed. Spec. W-C596G | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-15P

Logistics

  • Carton Quantity: 10
> View Substitutes (2)

Categories

Overview

UPC 78358517300
GTiN 00783585173009
Length 1.52 in
Width 1.52 in
Size 1.52 in x 1.52 in x 1.96 in
Color Black/White
Voltage 125 Volt
Type Insulgrip, Standard Sized
Material Thermoplastic
Conductor Size 16-10 AWG
Product Series Insulgrip
Cord Type Portable
Applications Industrial/Commercial
Mounting Type Cord
Height 1.96 in
Weight 0.15 lb
Wire Size 18-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Insulgrip
Standard C22.2 No. 42 File 280,CSA,Fed. Spec. W-C596G,NEMA WD-6,UL,UL498 File E1706
