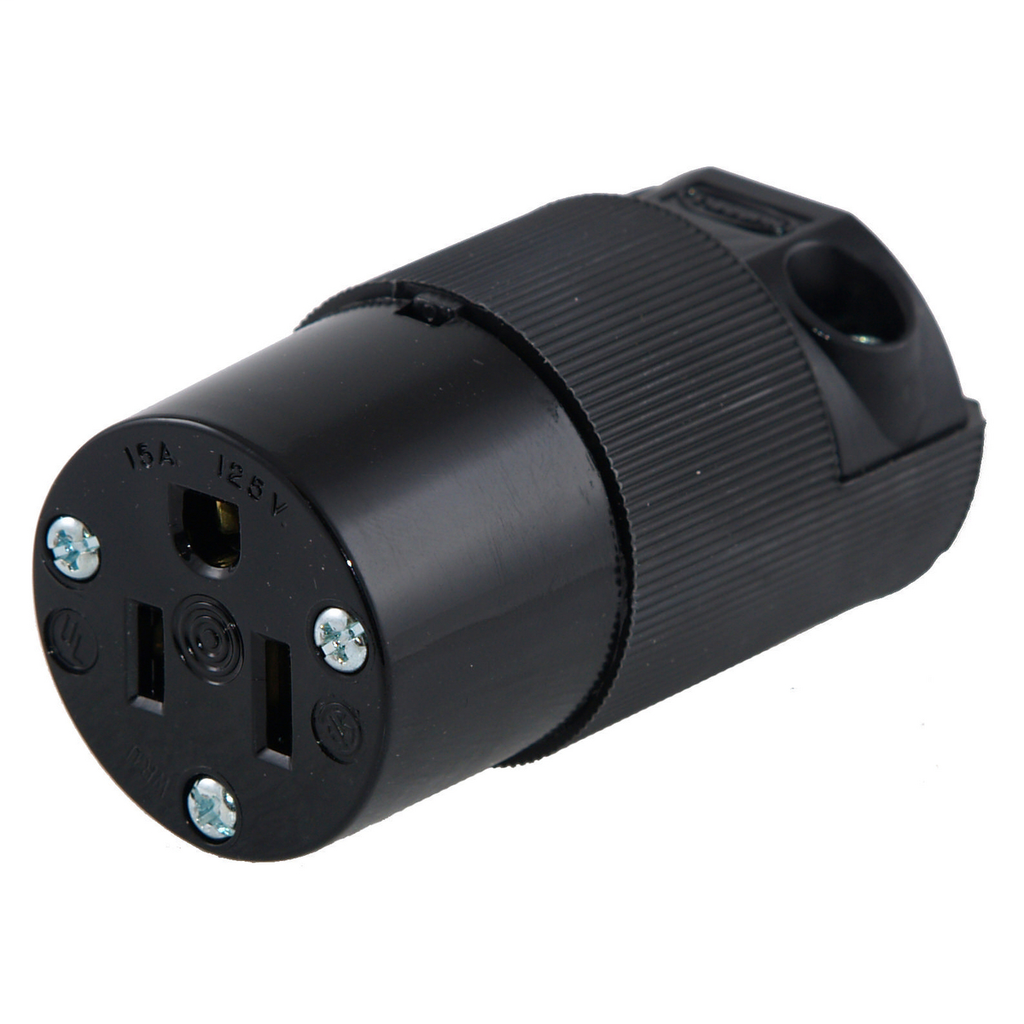

HCI HBL5269EBK Conn, 15A 125V, 5-15
$35.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5269EBK
North Coast Part # 998597

Features

  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Fast lead assembly screws
  • Beveled housing prevents snagging

Specifications

General

  • Application: Industrial/Commercial Grade
  • Color: Black
  • Cord Range: 0.250"-0.655" (6.4-16.6)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.50
  • Insulation: Insulated Body
  • Item Type: Insulgrip Plug
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 HB or better | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Insulgrip
  • Style: Standard
  • Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Type: Connector Body
  • UPC: 783585366128

Dimensions

  • Display Size: Standard
  • Weight: 0.2 lb

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Conductor Range: #18 AWG to #10 AWG
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280 | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358536612
GTiN 00783585366128
Length 2.910 in
Width 1.600 in
Size Standard
Color Black
Voltage 125 Volt
Type Heavy Duty, Standard, Insulated, Grounding
Material Polycarbonate
Number of Conductors 3
Product Series Insulgrip
Applications Industrial/Commercial
Height 1.600 in
Weight 0.2 lb
Temperature Rating -40 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Insulgrip
Conductor Size 18-10 AWG
Screw Size #8-32
Standard C22.2 No. 42 File 280,CSA,NEMA WD-6,UL,UL498 File E1706
Connection Type Female
Number of Ports 2
Contact Material Brass
Environmental Conditions Indoor Dry Unless Protected By Additional Means
