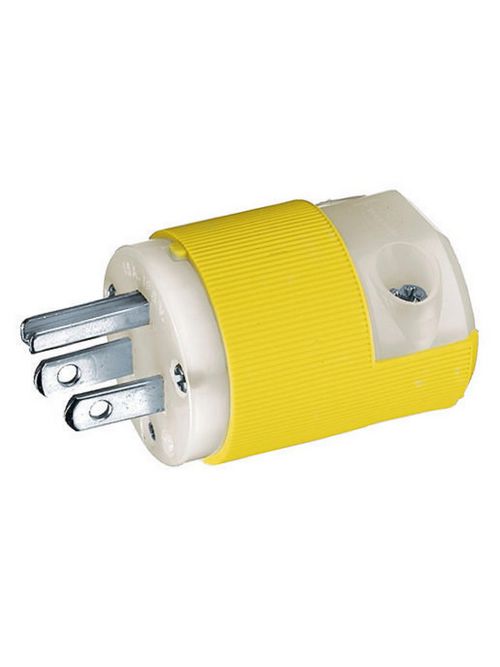

Hubbell Wiring Devices HBL52CM66C 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Yellow Nylon Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
$25.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL52CM66C
North Coast Part # 205762

Features

  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging

Specifications

General

  • Application: Industrial/Commercial Grade
  • Color: Yellow
  • Horsepower - Maximum: 0.50
  • Item Type: Insulgrip Plug
  • Material: Polycarbonate
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 HB or better | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Insulgrip
  • Style: Corrosion Resistant
  • Type: Plugs
  • UPC: 783585161501

Dimensions

  • Dimensions: 1.52 in x 1.52 in x 1.96 in
  • Height: 1.96 in
  • Length: 1.52 in
  • Weight: 0.2 lb
  • Width: 1.52 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280 | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-15P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358516150
GTiN 00783585161501
Length 1.52 in
Width 1.52 in
Size 1.52 in x 1.52 in x 1.96 in
Color Yellow
Voltage 125 Volt
Type Insulgrip, Standard Sized
Material Thermoplastic
Conductor Size 16-10 AWG
Product Series Insulgrip
Cord Type Portable
Applications Marine Wiring Devices
Mounting Type Cord
Height 1.96 in
Weight 0.2 lb
Wire Size 18-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Insulgrip
Standard C22.2 No. 42 File 280,CSA,NEMA WD-6,UL,UL498 File E1706
