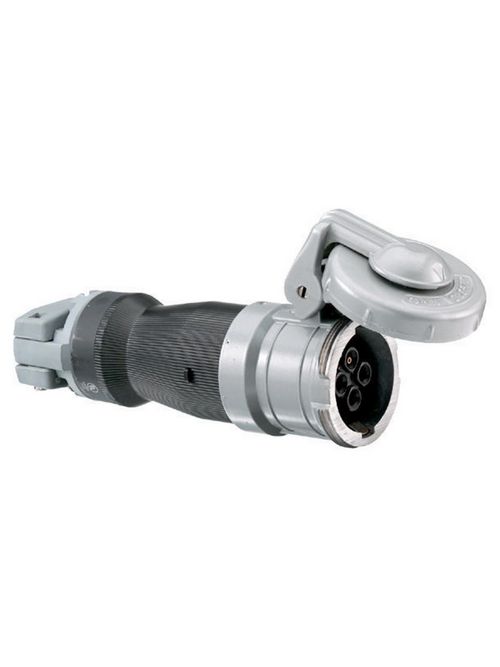

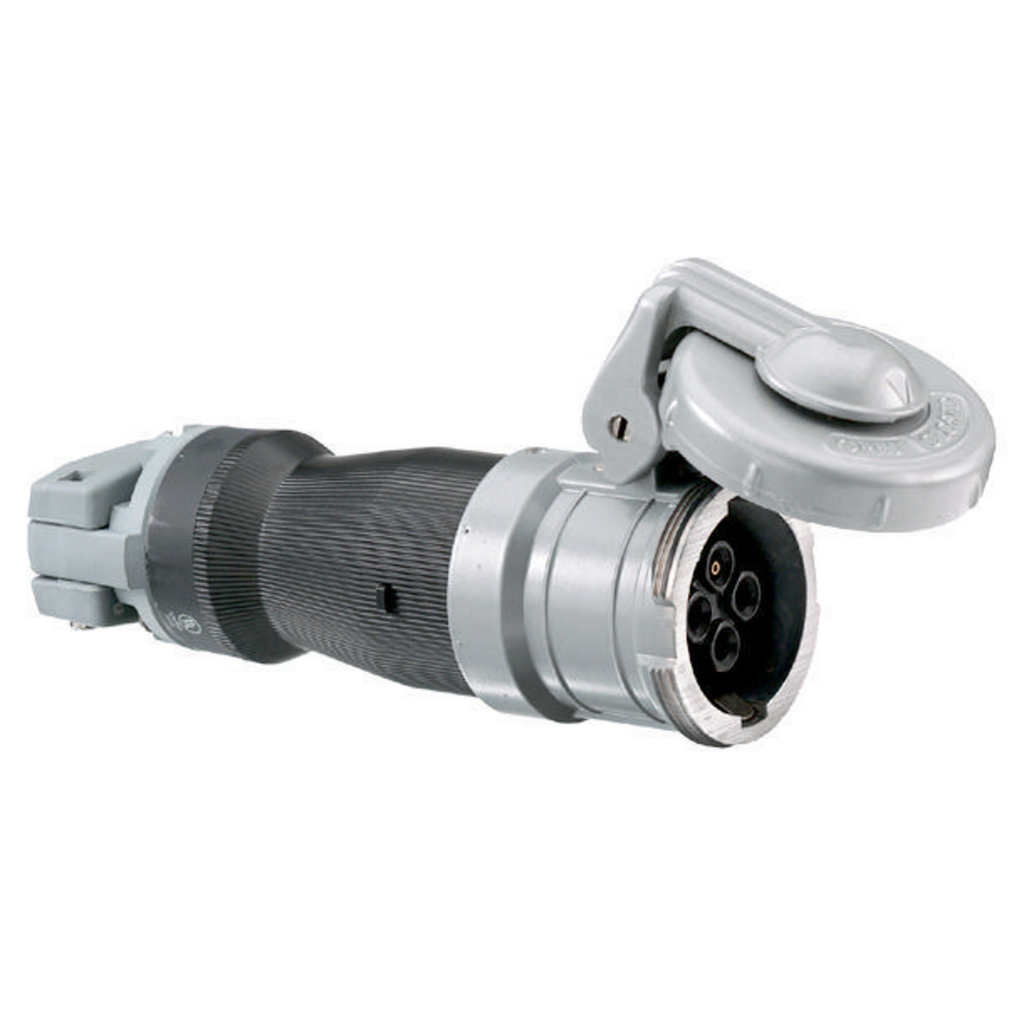

HWDK HBL530CS1W PS, INS, CONN, 4P5W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$340.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL530CS1W
North Coast Part # 349414

Features

  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Each - Height: 4.250 in
  • Each - Length: 9.000 in
  • Each - Width: 4.300 in
  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Metallic with Nylon Shroud
  • Conductor Range: #10 AWG to #8AWG
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • NEMA Rating: Non-NEMA
  • Number of Conductors: 5-Wire Grounding
  • Number of Poles: 4-Pole
  • Special Features: Watertight
  • Standard: CSA Certified to CSA Spec. C22.2 No. 182.1; UL Listed and CSA Certified Type 4X; UL Standard 1682
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector
  • Voltage Rating: 600 VAC/250 VDC
  • Voltage Rating Description: 600V AC/250V DC

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358501026
Item Long Description Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 600V AC, 3-Pole 4-Wire Grounding Style 1, Terminal Screws Gray and Black
GTiN 00783585010267
Length 9.000 in
Width 4.300 in
Size Standard
Color Black/Gray
Voltage 250 Volt
Type Straight
Material Valox 357
Number of Conductors 5-Wire Grounding
Conductor Size 10-8 AWG
Product Series UL 1686 Class 1 Insulgrip
Applications High Ampacity Connections
Mounting Type Cord
Height 4.250 in
Temperature Rating -40 to 75 C/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Pressure Screw Terminal
Current 30 A
Environmental Conditions Watertight
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Pin and Sleeve
Standard CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
