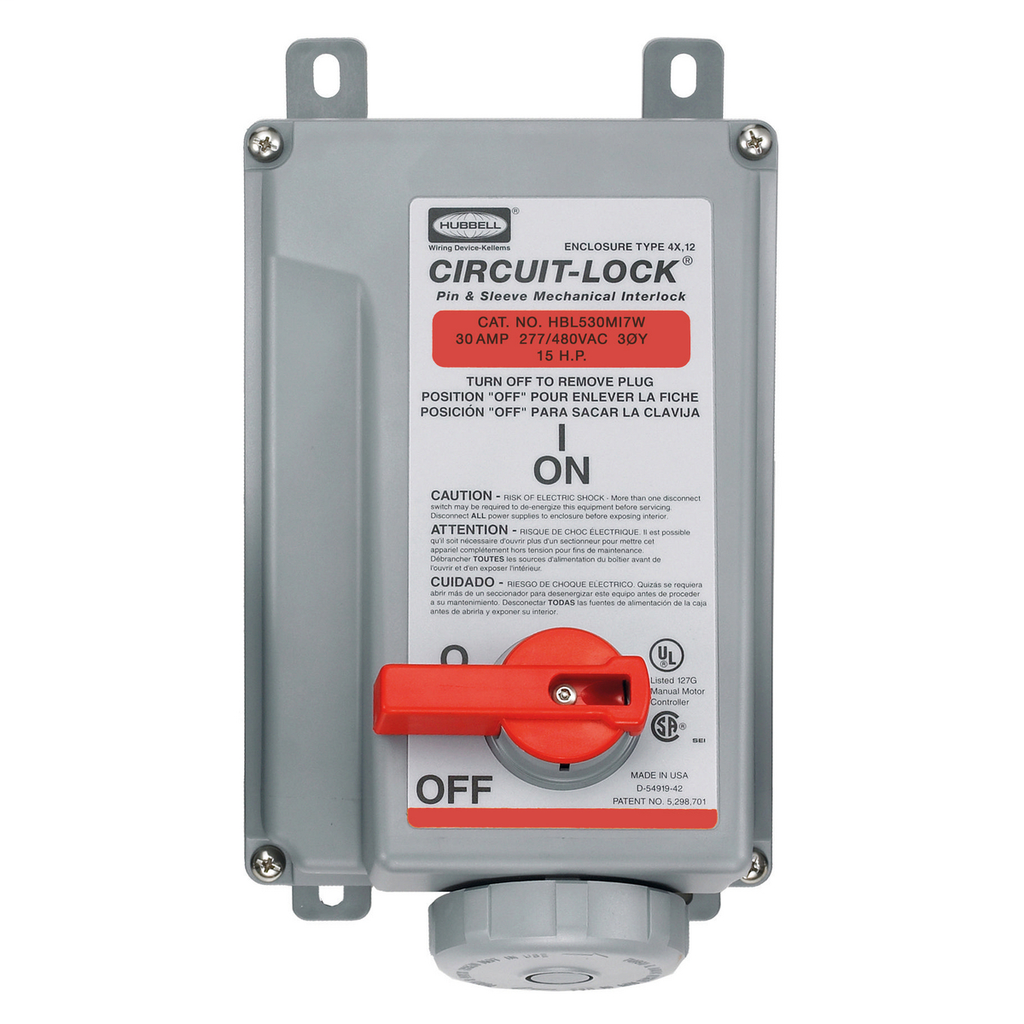

HCI HBL530MI7W PS, IEC, MECHINT, 4P
$1,572.48/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL530MI7W
North Coast Part # 331613

Features

  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle

Specifications

General

  • Application: High Ampacity Watertight Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • Item Type: Mechanically Interlocked Single
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage | Electrical - Dielectric Voltage - Withstands 3,000V AC Min | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 Classification | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) | Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). | Environmental - Operating Temperature - Max. Continuous +75°C | Min. Continuous -40°C | Mechanical - Impact Resistance - In accordance with UL 746C | Mechanical - Mounting - External adjustable feet | Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Series: Unfused Circuit-Lock
  • Style: Standard Service
  • Type: Mechanical Interlock
  • UPC: 783585406138

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase Y 277/480 VAC
  • Voltage Rating Description: 3 Phase Y 277/480 VAC
  • Wattage: 14400

Conductor Related

  • Number Of Wires: 5-Wire
  • Wire Size: #12 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA

Overview

UPC 78358540613
GTiN 00783585406138
Length 12.400 in
Width 8.000 in
Size Standard Sized Product
Color Red
Voltage 480 Volt
Type Mechanical Interlock
Material Thermoplastic
Product Series Unfused Circuit,Lock
Applications High Ampacity Watertight Connections
Height 7.300 in
Wire Size 12-8 AWG
Wattage 14,400 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand IEC 309 Pin and Sleeve Devices
Standard UL
Environmental Conditions Watertight
