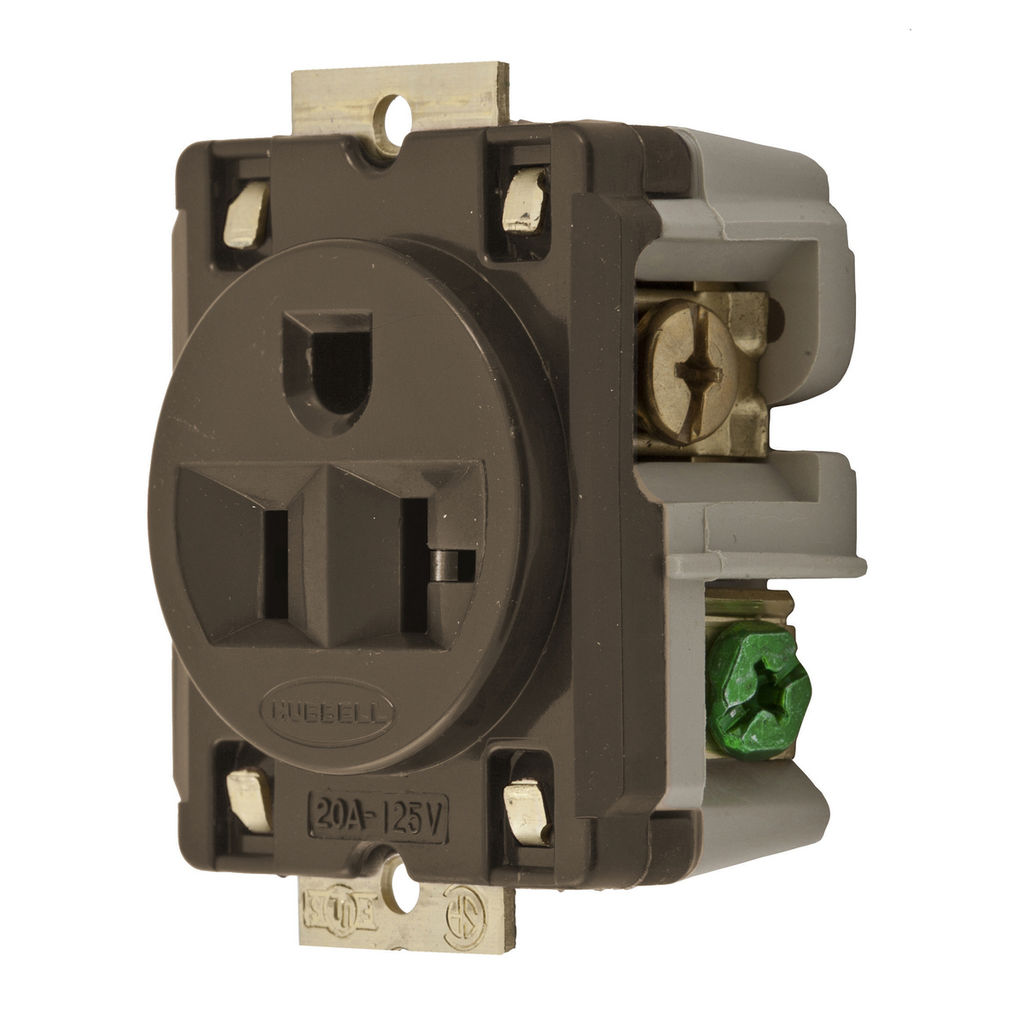

Hubbell Wiring Devices HBL5357 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Brown Single Panel Mount Receptacle
$31.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5357
North Coast Part # 269706

Features

  • One-piece brass integral ground strap
  • Unique bypass contact design

Specifications

General

  • Application: Extra Heavy Duty Specification Grade
  • Color: Brown
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Single
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Heavy Duty
  • Style: Finder Groove Face
  • Type: Single Receptacle
  • UPC: 783585014722

Dimensions

  • Dimensions: 1.94 in x 1.63 in x 1.19 in
  • Display Size: Standard Sized Product
  • Height: 1.19 in
  • Length: 1.94 in
  • Weight: 0.2 lb
  • Width: 1.63 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501472
GTiN 00783585014722
Length 1.94 in
Width 1.63 in
Size 1.94 in x 1.63 in x 1.19 in
Color Brown
Voltage 125 Volt
Type Extra Heavy Duty
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Heavy Duty
Applications Extra Heavy Duty
Mounting Type Screw, Recessed/Flush, Panel
Height 1.19 in
Weight 0.2 lb
Wire Size 12-10 AWG
Connection Type Back and Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard CSA 22.2,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
